What is the Knipex 97 49 59 crimping die used for?

It is designed for precise crimping of Amphenol Helios H4 solar connectors.

What cable capacities does this die support?

It features three crimping positions suitable for cable cross-sections of 2.5 mm², 4.0 mm², and 6.0 mm².

Is this die suitable for stamped Helios H4 contacts?

No, this crimping die is intended for turned contacts and is not suitable for stamped H4 contacts.

Is there an alignment locator available for this die?

Yes, the optional locator 97 49 59 1 ensures precise positioning of the contacts during crimping.

KNIPEX 97 49 59 crimping profile for solar connectors Helios H4 (Amphenol)

Name: KNIPEX 97 49 59 crimping profile for solar connectors Helios H4 (Amphenol)
Brand: KNIPEX
SKU: 03065388
Price: 127.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 49 59 | EAN 4003773073734

Recommended Retail Price €208.00

127.80 tax incl.

€105.62 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable connections for solar systems

Practical benefits

Tailored for Helios H4: The Knipex crimping die delivers secure and durable joints on cold-drawn photovoltaic connectors for dependable power transmission.
Three precise capacities: You can crimp conductor cross-sections of 2.5 mm², 4 mm², and 6 mm² with consistent mechanical accuracy.
Exact contact positioning: When combined with the optional locator, you align contacts precisely to achieve uniform and reliable results every time.

In a nutshell

The right choise for

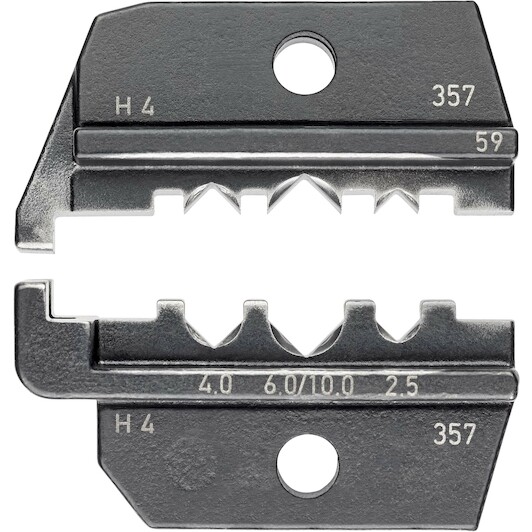

With the Knipex 97 49 59 crimping die, you can reliably terminate cold-drawn Amphenol Helios H4 solar connectors on photovoltaic systems. Designed for use with Knipex 97 43 series crimp system pliers such as the 97 43 200, this interchangeable die eliminates the need for an entire dedicated tool. Three precisely calibrated crimp nests easily accommodate cable cross-sections of 2.5 mm², 4.0 mm², and 6.0 mm², preventing loose connections and high transition resistance in DC cabling. When paired with the optional 97 49 59 1 locator, you achieve precise contact alignment and secure results every time.

Product information Accessories FAQ

€127.80

tax incl.

Key features according to our expert

Accessory/Part type: Crimp jaw

Product description

For turned Helios H4 crimp contacts from Amphenol, diameter 2.5 - 10 mm²
Die optional erhältliche Kontaktaufnahme 97 49 59 1 erleichtert die Führung der Kontakte beim Crimpvorgang
Not suitable for stamped H4 contacts

Documents

⤓ Product sheet PDF

All Features

Accessory/part type: Crimp jaw
Rohs compliance: irrelevant
Reach compliance: does not contain SVHC

Brand KNIPEX
03065388
EAN 4003773073734
Supplier number KNIPEX 97 49 59

Accessories

KNIPEX 97 49 59 1 Positioning aid for 97 49 59 (solar connectors Helios H4)

Recommended Retail Price €135.10

95.80

€79.17 excl. VAT

Delivery time average 10 days.

Frequently asked questions about this product

Answered by specialists

What is the Knipex 97 49 59 crimping die used for?: It is designed for precise crimping of Amphenol Helios H4 solar connectors.
Which pliers are compatible with this crimping die?: You can use it with Knipex 97 43 series crimp system pliers, such as the 97 43 200.
What cable capacities does this die support?: It features three crimping positions suitable for cable cross-sections of 2.5 mm², 4.0 mm², and 6.0 mm².
Is this die suitable for stamped Helios H4 contacts?: No, this crimping die is intended for turned contacts and is not suitable for stamped H4 contacts.
Is there an alignment locator available for this die?: Yes, the optional locator 97 49 59 1 ensures precise positioning of the contacts during crimping.
