Which connectors is the Knipex 97 49 05 crimping die designed for?

It is designed for non-insulated open plug-type connectors with a plug width of 4.8 mm and 6.3 mm.

What is the crimping capacity of this die?

The die covers wire cross-sections from 0.5 to 6.0 mm² (AWG 20-10).

Which pliers are compatible with this crimping die?

It fits interchangeable Knipex Crimp System pliers from the 97 43 series.

How many crimping positions does the Knipex 97 49 05 have?

It features 3 crimping positions: 0.5 - 1.0 mm², 1.5 - 2.5 mm², and 4.0 - 6.0 mm².

Is there an available locator for this crimping die?

Yes, the optional locator 97 49 95 can be used for precise alignment of the contact during crimping.

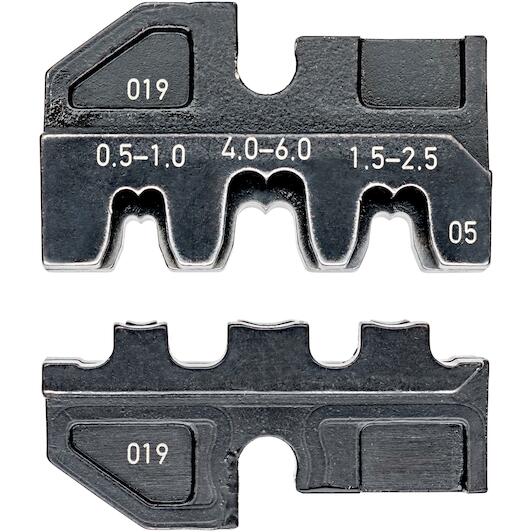

KNIPEX 97 49 05 crimping dies for uninsulated open plug-type connectors 4.8 + 6.3 mm

Name: KNIPEX 97 49 05 crimping dies for uninsulated open plug-type connectors 4.8 + 6.3 mm
Brand: KNIPEX
SKU: 41191039
Price: 71.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 49 05 | EAN 4003773030867

Recommended Retail Price €112.11

71.80 tax incl.

€59.34 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Precise crimping performance from Knipex

Practical benefits

Three dedicated crimp nests: You achieve solid connections across wire capacities from 0.5 to 6.0 mm² using three specialized profiles.
Designed for open connectors: The die fits non-insulated open plug connectors with standard widths of 4.8 and 6.3 mm.
Resilient long-lasting construction: Made from durable steel, it ensures consistent crimping pressure and repeatable results during demanding installations.

In a nutshell

The right choise for

With the Knipex 97 49 05 crimping die, you achieve mechanically strong and reliable connections on non-insulated open plug-type connectors with 4.8 mm and 6.3 mm widths. Designed as a modular insert for Knipex Crimp System pliers from the 97 43 series, it expands your tool setup seamlessly. Three dedicated crimping positions allow you to process wire cross-sections from 0.5 to 6.0 mm² with absolute accuracy, protecting the conductor from damage. Built from durable steel, it ensures consistent crimping results for vehicle wiring, control cabinets, and industrial maintenance.

Product information Accessories FAQ

€71.80

tax incl.

Key features according to our expert

Accessory/Part type: Crimp jaw
Shrinkage capacity: 0,5 - 6,0 mm²

Product description

Application: for uninsulated, open flat plug connectors
> Crimp nest 1: 0.5 - 1.0mm² - Pin width 4.8 und 6.3mm
> Crimpnest 2: 1.5 - 2.5mm² - Plug width 4.8 and 6.3mm
> Crimp nest 3: 4.0 - 6.0mm² - Plug width 4.8 and 6.3mm
The optionally available contact 97 49 95 facilitates contact management during the crimping process
Nicht geeignet für spezielle Kontaktserien von z.B. Tyco Electronics, Molex u.s.w
Anwendung: unisolierte, offene Steckverbinder (4.8 + 6.3 mm Plug width) 0.5 - 6.0 mm²

Documents

⤓ Product sheet PDF

All Features

Accessory/part type: Crimp jaw
Shrinkage capacity: 0,5 - 6,0 mm²
Dimensions: 50 x 10 mm
Use: non-insulated open connection plugs (4.8 + 6.3 mm plug width)
Weight: 46 g
Rohs compliance: irrelevant
Reach compliance: does not contain SVHC
Number of crimp profiles: 3

Brand KNIPEX
41191039
EAN 4003773030867
Supplier number KNIPEX 97 49 05

Accessories

KNIPEX 97 49 95 positioning aid for 97 49 05

Recommended Retail Price €54.63

38.80

€32.07 excl. VAT

Delivery time average 11 days.

Frequently asked questions about this product

Answered by specialists

Which connectors is the Knipex 97 49 05 crimping die designed for?: It is designed for non-insulated open plug-type connectors with a plug width of 4.8 mm and 6.3 mm.
What is the crimping capacity of this die?: The die covers wire cross-sections from 0.5 to 6.0 mm² (AWG 20-10).
Which pliers are compatible with this crimping die?: It fits interchangeable Knipex Crimp System pliers from the 97 43 series.
How many crimping positions does the Knipex 97 49 05 have?: It features 3 crimping positions: 0.5 - 1.0 mm², 1.5 - 2.5 mm², and 4.0 - 6.0 mm².
Is there an available locator for this crimping die?: Yes, the optional locator 97 49 95 can be used for precise alignment of the contact during crimping.
