Product description

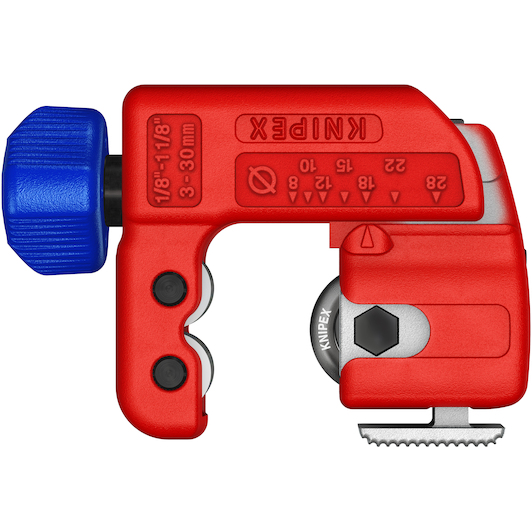

- Knipex 90 31 01 TubiX S Pipe cutter 77 mm
- Every detail optimised for cutting pipes in the smallest spaces
- QuickLock one-hand locking mechanism: hold and clamp onto the pipe without assistance

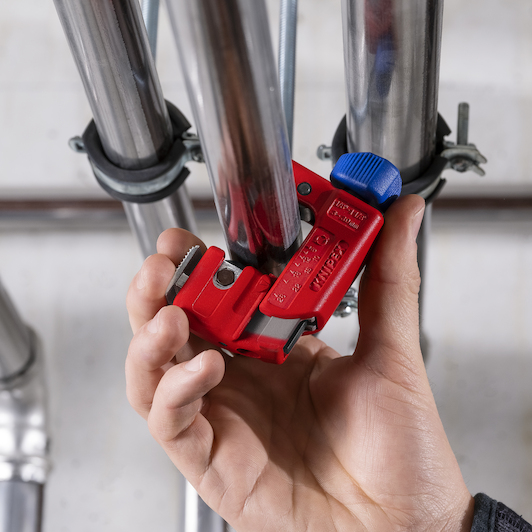

- Fits in your pocket and even cuts stainless steel
- Cuts Ø 3 - 30 mm (1/8 - 1 1/8") pipes with wall thicknesses up to 2 mm

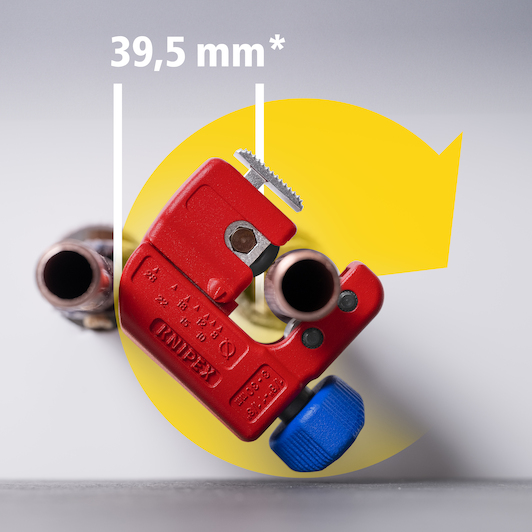

- Very small cutting circle: very little space required when cutting

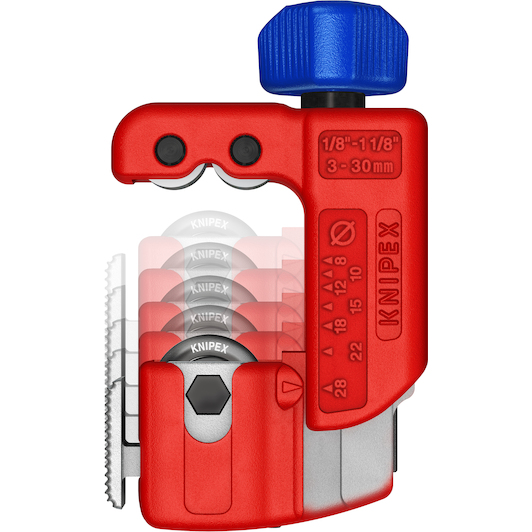

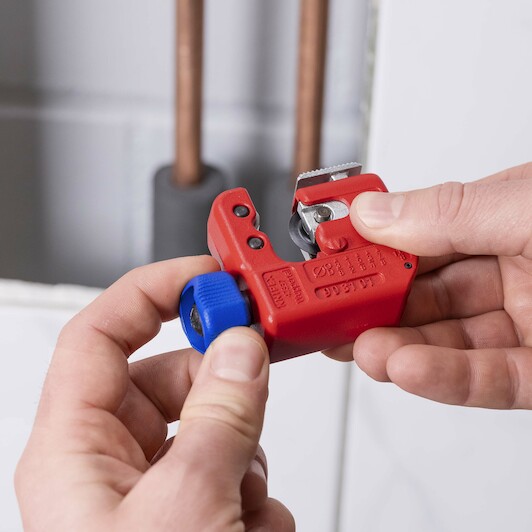

- Tube diameter pre-adjustable with measuring scale, easily snaps into place through spring-loaded cutting wheel
- Fast and precise positioning of cutting wheel with spring
- High-quality needle bearings in cutting wheel and guide rollers

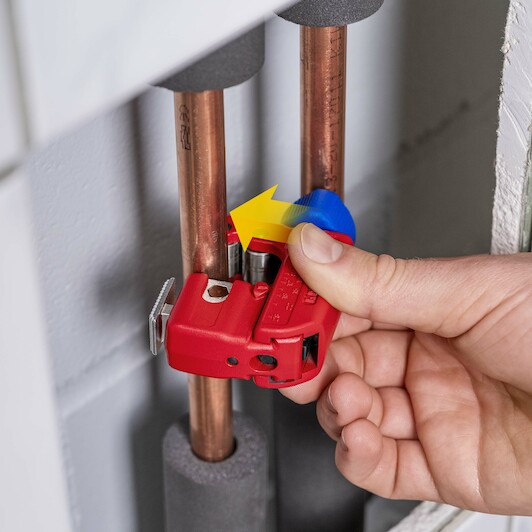

- Optimised dial with structured thumb recess offers 20 % better power transmission and prevents slipping, even when wet
- Cutting wheel is easily replaceable, with spare wheel in handle knob
- Cutting wheel made of high-quality ball-bearing steel

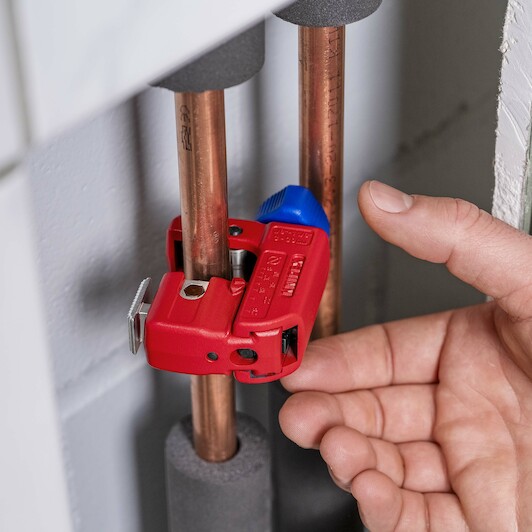

Measuring just 77 x 55 x 26 mm, the Mini also works in exposed walls or narrow shafts.
It is easy to use: the pipe diameter can be preset using a scale. With the Quicklock locking system, you can then position it accurately with just one hand. The specially shaped rotary knob improves power transmission by around 20% when adjusting.
The smallest tube cutter TubiX S fits easily in your pocket and is therefore always quickly to hand!

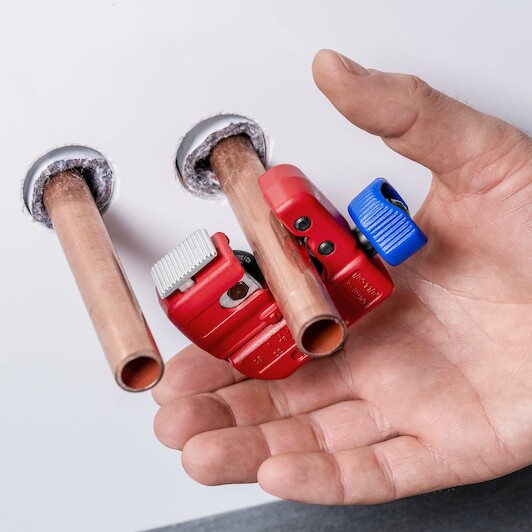

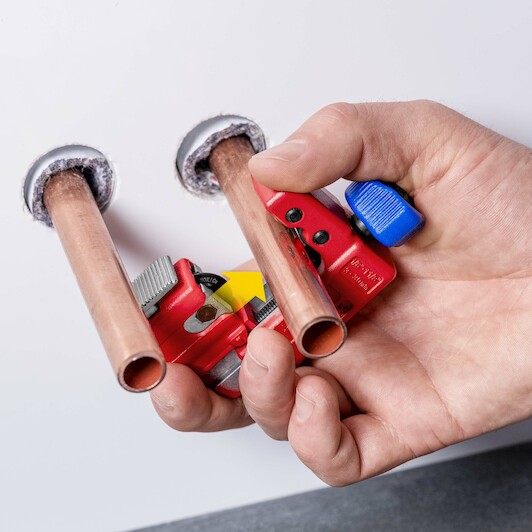

When repairing plumbing installations, there is often not enough space to use a large pipe cutter. This is where the small TubiX S with its very small cutting circle comes in handy. The QuickLock locking feature allows independent holding and clamping of the pipe. Firstly, the tube diameter can be preset with the scale between Ø 3 - 30 mm. The TubiX S can then be easily and accurately clamped onto the pipe thanks to the cutting wheel with spring. Secondly, the pipe cutter can also be attached to any pipe within its capacity range in the open position and simply pushed shut until the QuickLock lock engages. In both cases, the TubiX S now clamps firmly onto the pipe thanks to the spring-loaded cutting wheel and holds its position even when the cutting pressure is adjusted.
The strength of the KNIPEX TubiX S is also evident when cutting: it is shaped so that it only needs a minimum distance from the wall or neighbouring pipes to turn freely. The shape-optimised rotary knob allows particularly effective adjustment and offers approx. 20 per cent improved power transmission. The textured thumb rest prevents slipping, even in wet conditions. The TubiX S for your pocket is always at hand and is suitable for tricky repairs or even small new installations.
