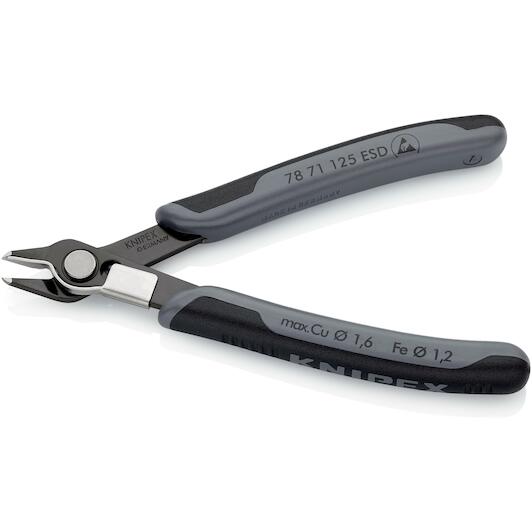

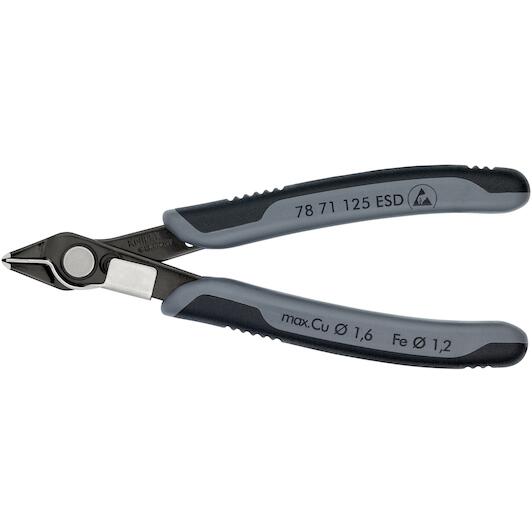

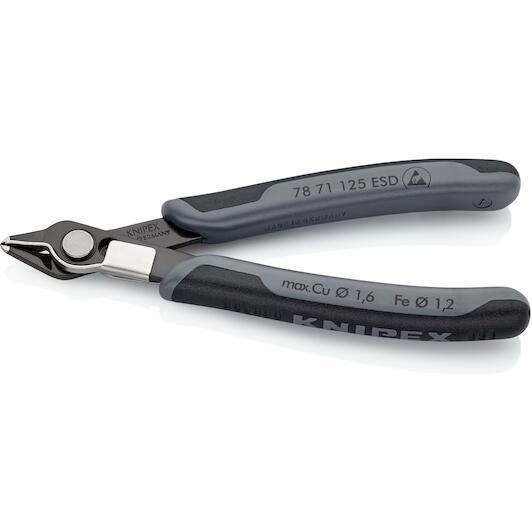

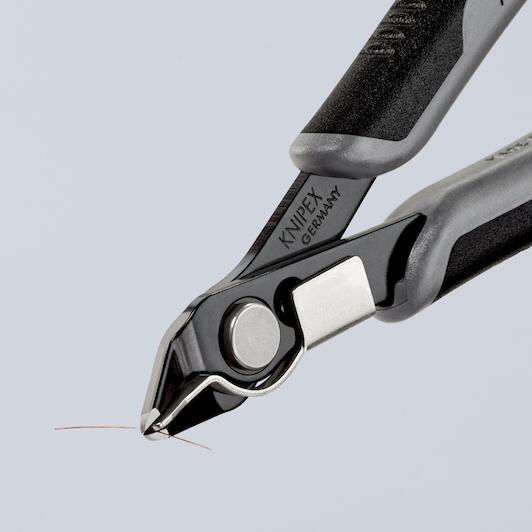

Product description

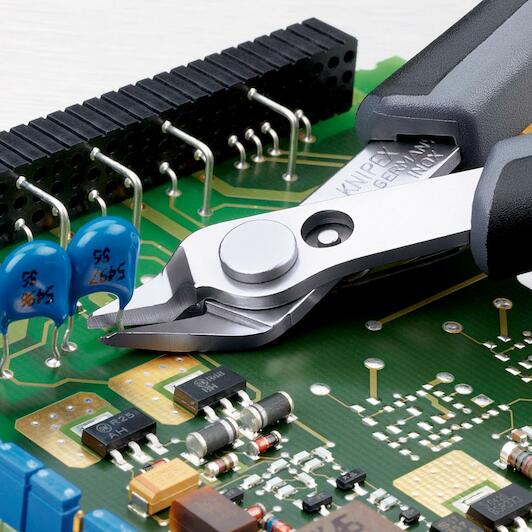

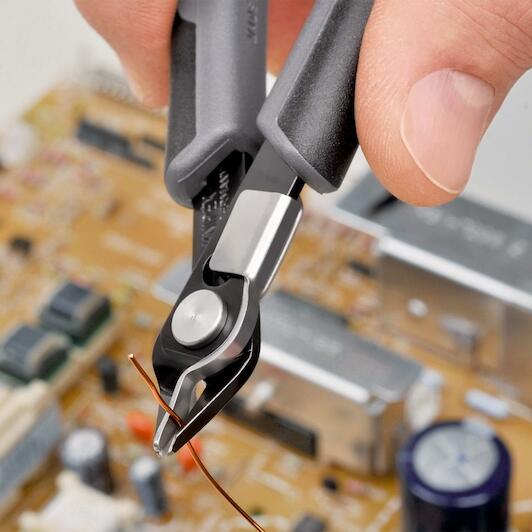

- Precision pliers for very fine cutting, e.g. in electronics and fine mechanics
- Electrically dissipative design
- Ground, very sharp cutting edges without facets
- Scissor blade with controlled micro-edge adjustment for longer lifetime and ultra-precision, even when cutting the thinnest wires

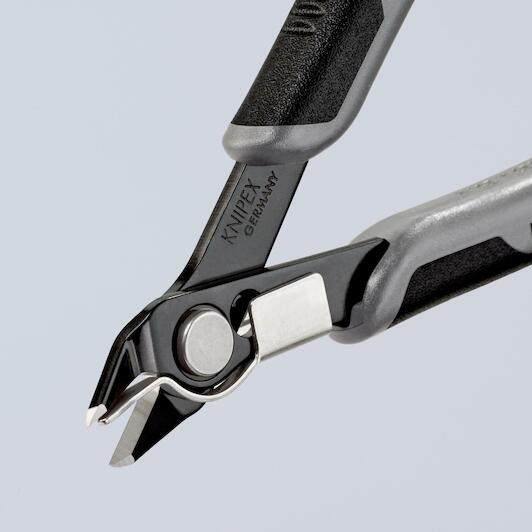

- Precisely shaped tips also cut flat wires from Ø 0.2 mm
- Hinge with stainless steel hinge pin
- Flexible hinge makes working comfortable
- With opening spring and opening stop

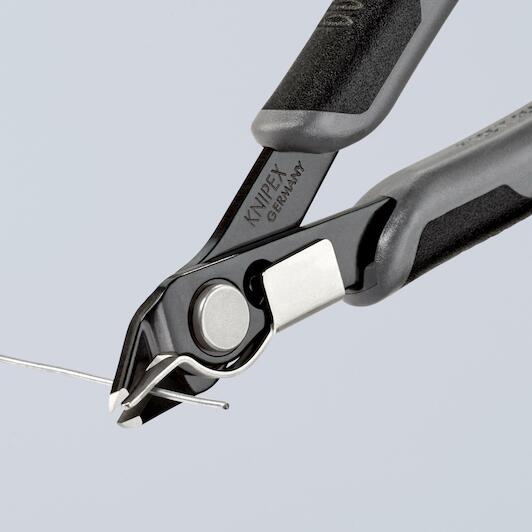

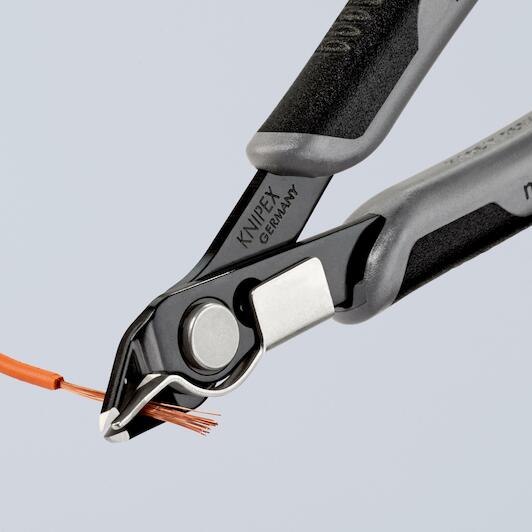

- With wire clamp: the wire ends cannot jump out uncontrollably
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
- Special tool steel, browned
Key features according to our expert
-
Pliers type: Diognal cutting pliers
-
Non-sparking: No
-
ESD: Yes
-
Surface treatment (pliers): Blackened
-
Material (handle): Multicomponent
-
Length: 125 mm
-
Product Range: Knipex Electronic Super Knips
Specifications / All features
-
Brand:
KNIPEX
-
41190845
-
EAN:
4003773025191
-
Supplier number:
KNIPEX 78 71 125 ESD
- Pliers type
- Diognal cutting pliers
- Non-sparking
- No
- Esd
- Yes
- Surface treatment (pliers)
- Blackened
- Material (handle)
- Multicomponent
- Length
- 125 mm
- Rohs compliance
- irrelevant
- Tang
- burnished

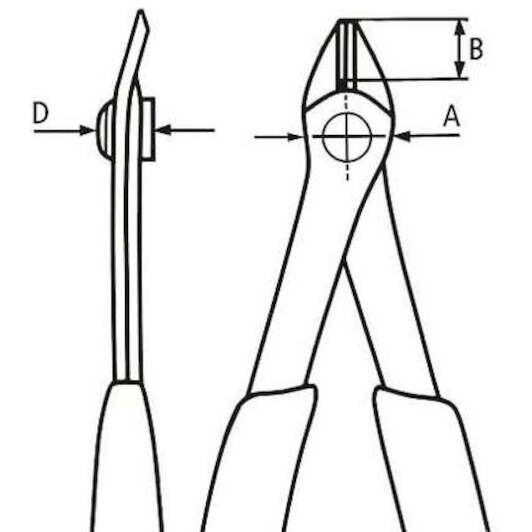

- Head width (a)
- 13.5 mm
- Blade length mm (c)
- 0,0
- Handle
- with multi-component handle
- Cutting capacities semi-hard wire (diameter)
- Ø 1.2 mm
- Reach compliance
- does not contain SVHC
- Jaw length (b)
- 9 mm
- Cutting capacities piano wire (diameter)
- Ø 0,0
- Cup
- burnished
- Jaw thickness (hinge) (d)
- 7.5 mm
- Weight
- 57 g
- Dimensions
- 125 x 61 x 13 mm
- Standard
- DIN ISO 9654 DIN EN 61 340-5
- Product range
- Knipex Electronic Super Knips
