What is this diagonal cutter primarily used for?

It is designed for ultra-fine cutting in electronics and fine mechanics, such as flush cutting thin wires and cable ties.

What is the purpose of the ESD feature?

The ESD grips slowly and safely discharge electrostatic energy, protecting sensitive electronic components from damage.

What is the maximum cutting capacity?

It cuts soft wire from Ø 0.2 mm to 2.1 mm and medium-hard wire up to a diameter of 1.4 mm.

Does this tool provide a flush cut?

Yes, ground cutting edges without a bevel allow flush cutting right next to surfaces and components.

Does the tool have an opening spring?

Yes, it features an opening spring and opening limiter for smooth, fatigue-free operation.

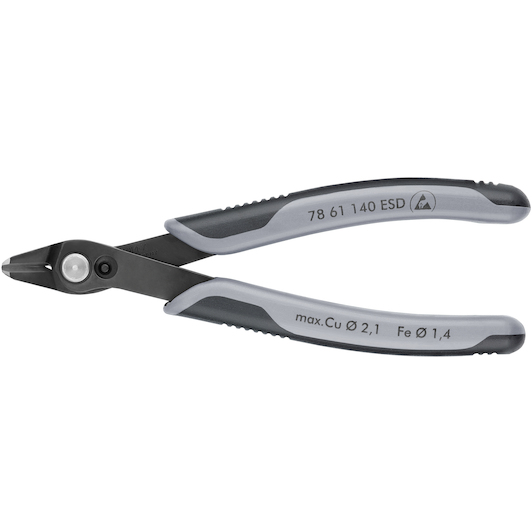

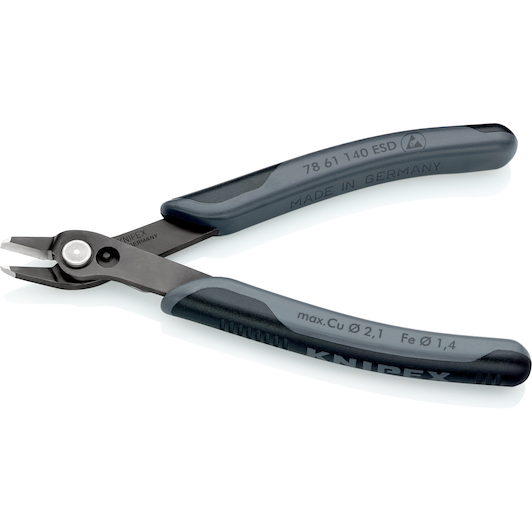

KNIPEX 78 61 140 ESD electronic Super Knips XL ESD with multi-component handles browned 140 mm

Name: KNIPEX 78 61 140 ESD electronic Super Knips XL ESD with multi-component handles browned 140 mm
Brand: KNIPEX
SKU: 03065085
Price: 29.2 EUR
Availability: PreOrder

Supplier number: KNIPEX 78 61 140 ESD | EAN 4003773081708

Recommended Retail Price €39.39

29.20 tax incl.

€24.13 excl. VAT (incl. all environmental contributions)

On order: delivered from 26/10/2026

Ordered before 20:00 - delivered as of 26/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Clean flush cuts with Knipex

Practical benefits

Flush and precise cutting: You achieve clean, flush cuts on fine wires and cable ties thanks to precision ground edges without bevel.
Safe electrostatic discharge: The dissipative handles discharge electrostatic energy in a controlled way, keeping your sensitive electronic components safe from sudden electrical shocks.
Smooth fatigue-free handling: The integrated opening spring and limiter ensure effortless action, helping you work comfortably during repetitive fine mechanical assembly tasks.

In a nutshell

The right choise for

With the Knipex 78 61 140 esd diagonal cutter, you tackle ultra-fine cutting tasks with absolute precision and confidence. Ground cutting edges without a bevel deliver clean, flush cuts when trimming cable ties and delicate wire leads. The dissipative esd handles safely discharge electrostatic energy in a controlled manner, keeping sensitive electronic components protected during assembly and repair. Measuring 140 mm in length, this tool cuts soft wire from 0.2 mm to 2.1 mm and medium-hard wire up to 1.4 mm in diameter. The integrated opening spring and limiter ensure smooth handling and prevent hand strain during repetitive work.

Product information FAQ

€29.20

tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
ESD: Yes
Surface treatment (pliers): Blackened
Material (handle): Multicomponent
Length: 140 mm
Product Range: Knipex Electronic Super Knips

Product description

Additional 15 mm longer version: greater stability, more cutting power
For very fine cutting e.g. in electronics and fine mechanics
Especially for shortening cable ties
Ground, very sharp cutting edges without bevel
Scissor blade with controlled micro-edge adjustment for longer lifetime and ultra-precision, even when cutting the thinnest wires
Precisely shaped tips also cut flat wires from Ø 0.2 mm
Hinge with stainless steel hinge pin
Flexible hinge makes working comfortable
With opening spring and opening stop

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Esd: Yes
Surface treatment (pliers): Blackened
Material (handle): Multicomponent
Length: 140 mm
Rohs compliance: irrelevant
Tang: burnished
Head width (a): 15.7 mm
Blade length mm (c): 0,0
Handle: with multi-component handle
Cutting capacities semi-hard wire (diameter): Ø 1.4 mm
Reach compliance: does not contain SVHC
Jaw length (b): 12.3 mm
Cutting capacities piano wire (diameter): Ø 0,0
Cup: burnished
Jaw thickness (hinge) (d): 9.2 mm
Weight: 77 g
Dimensions: 140 x 83 x 14 mm
Product range: Knipex Electronic Super Knips

Brand KNIPEX
03065085
EAN 4003773081708
Supplier number KNIPEX 78 61 140 ESD

Frequently asked questions about this product

Answered by specialists

What is this diagonal cutter primarily used for?: It is designed for ultra-fine cutting in electronics and fine mechanics, such as flush cutting thin wires and cable ties.
What is the purpose of the ESD feature?: The ESD grips slowly and safely discharge electrostatic energy, protecting sensitive electronic components from damage.
What is the maximum cutting capacity?: It cuts soft wire from Ø 0.2 mm to 2.1 mm and medium-hard wire up to a diameter of 1.4 mm.
Does this tool provide a flush cut?: Yes, ground cutting edges without a bevel allow flush cutting right next to surfaces and components.
Does the tool have an opening spring?: Yes, it features an opening spring and opening limiter for smooth, fatigue-free operation.
