What is the Knipex 77 22 115 ESD used for?

It is designed for ultra-fine cutting work in electronics and fine mechanics, such as flush cutting soft and medium-hard wires on circuit boards.

What is the purpose of the ESD handles?

The multi-component grips discharge electrostatic energy slowly and in a controlled manner to protect sensitive electronic components from ESD damage.

Can this diagonal cutter cut hard wire?

No, this cutter has edges without bevel and is strictly designed for soft and medium-hard wires. Do not use it on hard wire or piano wire.

What is the advantage of the box joint design?

The box joint guides the plier legs with zero backlash and smooth movement, preventing tilting and ensuring precise cuts over a long service life.

Does this tool produce a flush cut?

Yes, the round head without bevel allows you to cut wire ends completely flush against surfaces and components.

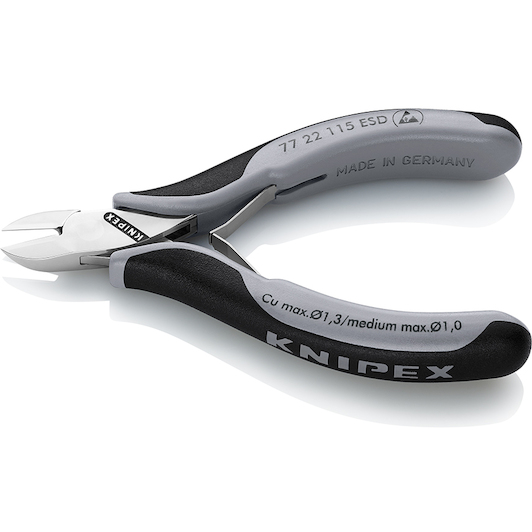

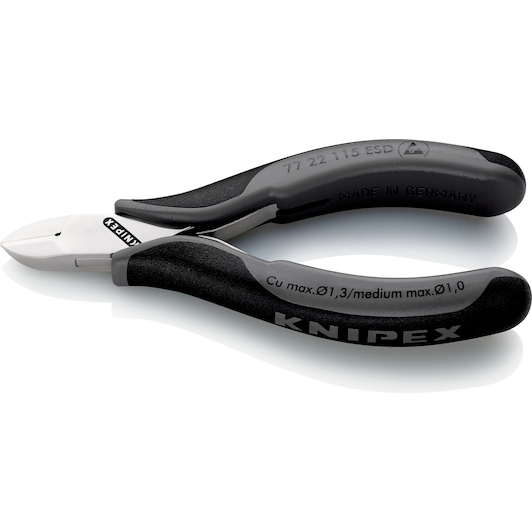

KNIPEX 77 22 115 ESD Electronics diagonal cutters ESD with multi-component handles 115 mm

Name: KNIPEX 77 22 115 ESD Electronics diagonal cutters ESD with multi-component handles 115 mm
Brand: KNIPEX
SKU: 41190802
Price: 34.8 EUR
Availability: InStock

Supplier number: KNIPEX 77 22 115 ESD | EAN 4003773025115

34.80 tax incl.

€28.76 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Precision electronics work with Knipex

Practical benefits

Controlled electrostatic discharge: The dissipative handles discharge static energy gradually so you protect sensitive electronic components from damage.

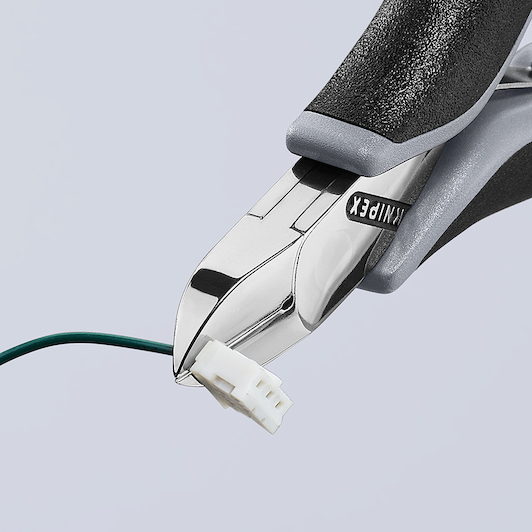

Clean flush cutting edge: Designed without a bevel, the cutting edges allow you to cut soft wires completely flush on circuit boards.
Smooth zero-backlash joint: The sturdy box joint and low-friction double spring ensure you experience smooth, effortless opening during repetitive tasks.

In a nutshell

The right choise for

With the Knipex 77 22 115 esd electronics diagonal cutters, you tackle delicate cutting tasks on circuit boards and fine mechanics with total precision. The dissipative multi-component grips protect sensitive electronic components by safely draining electrostatic energy. Designed with a round head and cutting edges without a bevel, they allow you to cut soft and medium-hard wires completely flush without sharp protrusions. The 115 mm tool features a sturdy box joint for smooth, zero-backlash operation, while the low-friction double spring prevents hand fatigue during repetitive wire trimming.

Product information FAQ

€34.80

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
ESD: Yes
Material (handle): Multicomponent
Length: 115 mm

Product description

Robust, stronger load-bearing construction with backlash-free through-hinge
Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger
Low force requirements due to very high leverage
Load-optimised design for a more direct working feel
Low-friction double spring for smooth and even opening
The mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the gear circuit due to flying chrome shavings
Cutting edges additionally laser-hardened, cutting hardness approx. 62 HRC
Round head without bevel

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Esd: Yes
Material (handle): Multicomponent
Length: 115 mm

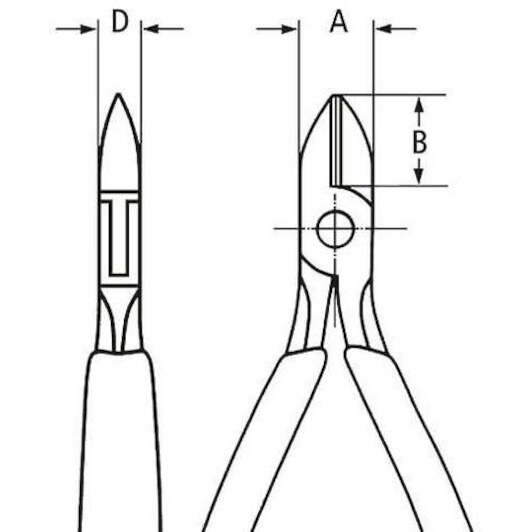

Blade length mm (c): 0,0
Handle: with multi-component handle
Cutting capacities semi-hard wire (diameter): Ø 1.0 mm
Reach compliance: does not contain SVHC
Jaw length (b): 14 mm
Cutting capacities piano wire (diameter): Ø 0,0
Rohs compliance: irrelevant
Weight: 70 g
Jaw thickness (hinge) (d): 7.5 mm
Cup: mirror-polished
Dimensions: 115 x 69 x 16 mm
Standard: DIN ISO 9654 DIN EN 61 340-5
Head width (a): 11 mm

Brand KNIPEX
41190802
EAN 4003773025115
Supplier number KNIPEX 77 22 115 ESD

Frequently asked questions about this product

Answered by specialists

What is the Knipex 77 22 115 ESD used for?: It is designed for ultra-fine cutting work in electronics and fine mechanics, such as flush cutting soft and medium-hard wires on circuit boards.
What is the purpose of the ESD handles?: The multi-component grips discharge electrostatic energy slowly and in a controlled manner to protect sensitive electronic components from ESD damage.
Can this diagonal cutter cut hard wire?: No, this cutter has edges without bevel and is strictly designed for soft and medium-hard wires. Do not use it on hard wire or piano wire.
What is the advantage of the box joint design?: The box joint guides the plier legs with zero backlash and smooth movement, preventing tilting and ensuring precise cuts over a long service life.
Does this tool produce a flush cut?: Yes, the round head without bevel allows you to cut wire ends completely flush against surfaces and components.
