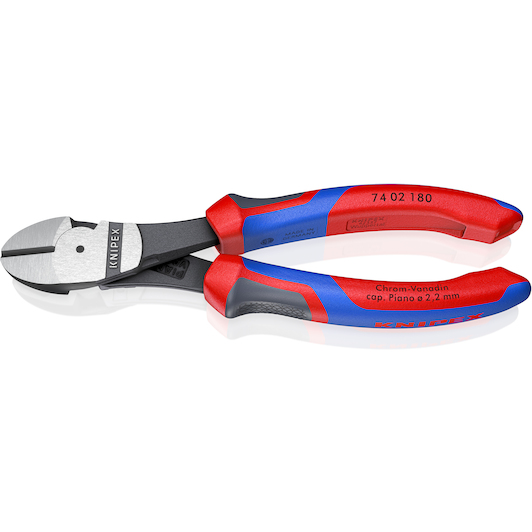

KNIPEX 74 02 180 power side cutters with comfort handles black atramentised 180 mm

Name: KNIPEX 74 02 180 power side cutters with comfort handles black atramentised 180 mm
Brand: KNIPEX
SKU: 41190152
Price: 28.2 EUR
Availability: InStock
Rating: 9 (2 reviews)

Supplier number: KNIPEX 74 02 180 | EAN 4003773023074

2 review(s)

28.20 tax incl.

€23.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High leverage cutting with minimal effort

Practical benefits

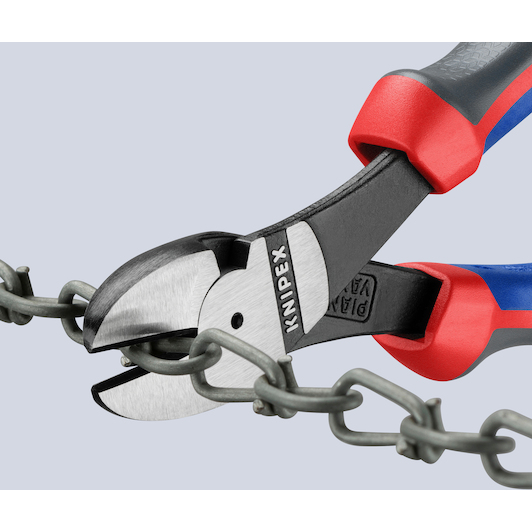

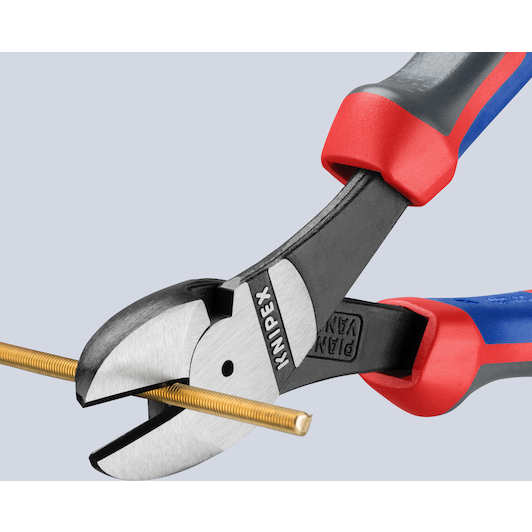

Exceptional cutting power on wire: You cut effortlessly through hard materials and piano wire using the induction-hardened precision edges.
Multi-component grips for comfort: The Knipex 74 02 180 provides a secure, comfortable hold to reduce hand strain during continuous use.
Forged joint axle maximizes leverage: The optimized transmission ratio allows you to apply high cutting pressure with significantly less force.

In a nutshell

The right choise for

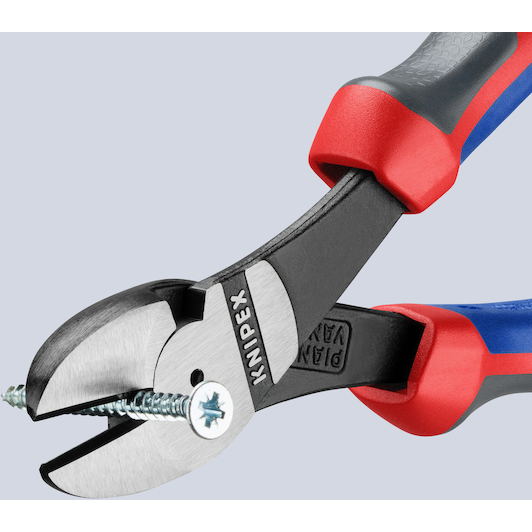

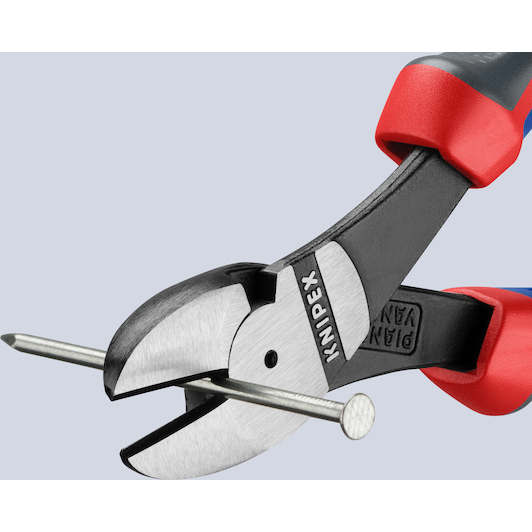

With the Knipex 74 02 180 high leverage diagonal cutter, you cut effortlessly through tough materials and demanding wire types such as piano wire. Thanks to the forged joint axle and optimized transmission ratio, you need 20% less hand force compared to standard diagonal cutters. The induction-hardened precision cutting edges deliver high cutting performance for electrotechnical installations and mechanical assembly tasks. Measuring a compact 180 mm in length, it fits easily into any tool bag. Ergonomic multi-component comfort grips ensure a secure hold and prevent hand fatigue during continuous use, while the atramentized surface finish provides reliable corrosion protection.

Product information FAQ Reviews

€28.20

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Length: 180 mm
Non-sparking: No

Product description

For very high and lasting load
Large cutting capacity at low effort thanks to optimum matching of cutting angle and gear ratio
Extra induction-hardened precision cutting edges (hardness is approx. 64 HRC), for all wire types, including piano wire
With comfort handles: made of three ergonomic components for optimum handling, plus two KNIPEXtend connections for extensions

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Length: 180 mm
Non-sparking: No
Handle: with comfort handles
Cutting capacities semi-hard wire (diameter): Ø 3.8 mm
Cutting capacities soft wire (diameter): Ø 2.7 mm
Reach compliance: does not contain SVHC
Cutting capacities piano wire (diameter): Ø 2.2 mm
Rohs compliance: irrelevant
Cutting value cu cable, multiple stranded: Ø 0,0
Weight: 273 g
Cup: polished
Dimensions: 180 x 53 x 22 mm
Standard: DIN ISO 5749
Tang: black atramentized

Brand KNIPEX
41190152
EAN 4003773023074
Supplier number KNIPEX 74 02 180

Frequently asked questions about this product

Answered by specialists

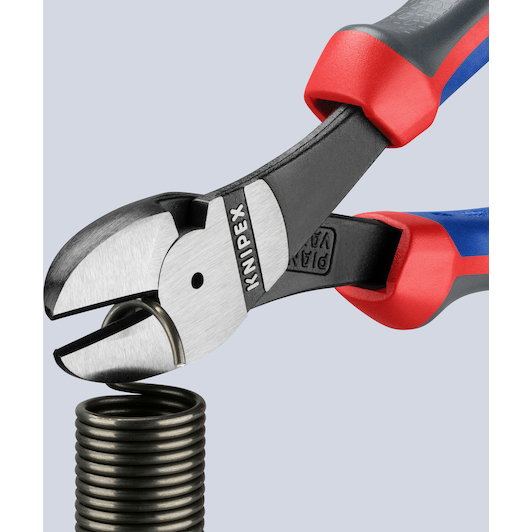

Is this high leverage diagonal cutter suitable for piano wire?: Yes, the induction-hardened cutting edges can cut piano wire up to a diameter of 2.2 mm.
What is the cutting capacity for hard and medium-hard wire?: It cuts hard wire up to 2.7 mm and medium-hard wire up to 3.8 mm.
What is the advantage of the leverage on the 74 02 180 model?: The forged joint axle and optimal lever ratio require 20% less force compared to standard diagonal cutters.
Is this tool insulated for live electrical work (1000V)?: No, the multi-component comfort grips provide ergonomic handling but are not VDE-rated or 1000V-insulated.
What is the total length of this diagonal cutter?: This high leverage diagonal cutter has an overall length of 180 mm.
