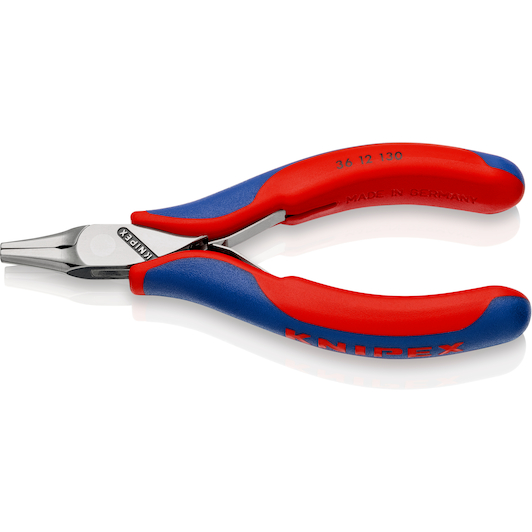

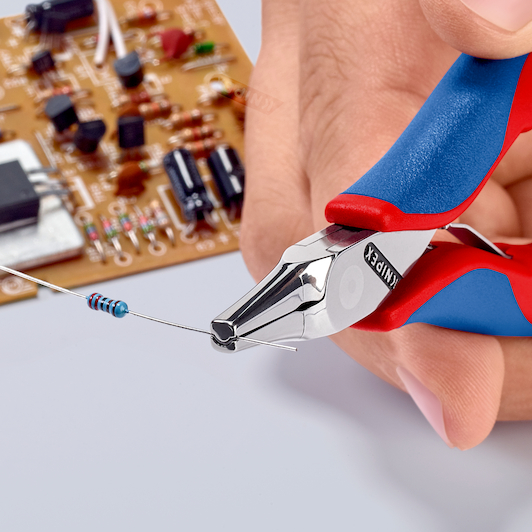

Product description For bending and cutting wire ends on components Robust, heavy-duty construction with precise clearance-free hinge Side corners carefully rounded off: no sharp edges that could damage the material Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger Even deflection for a better working experience Smoothly ground gripping surfaces; edges carefully deburred Low-friction double spring for smooth and even opening Mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the shifting circuit due to flying chrome shavings For bending an arc for the distance to the circuit board
Key features according to our expert
Length: 130 mm
Pliers type: Assembly pliers
Specifications / All features
Brand:
KNIPEX
41190520
EAN:
4003773016861
Supplier number:
KNIPEX 36 12 130
Show more features
Length
130 mm
Pliers type
Assembly pliers
Handle
with multi-component handle
Handle size
5.5 mm
Cutting capacities soft wire (diameter)
Ø 0,0
Reach compliance
does not contain SVHC
Jaw thickness (hinge) (t1)
9.5 mm
Head width (w3)
12.0 mm
Rohs compliance
irrelevant
Tip thickness (w4)
6.0 mm
Cup
mirror-polished
Weight
70 g
Use
wire profile bending
Dimensions
130 x 68 x 17 mm
Jaw length (l3)
23.0 mm
