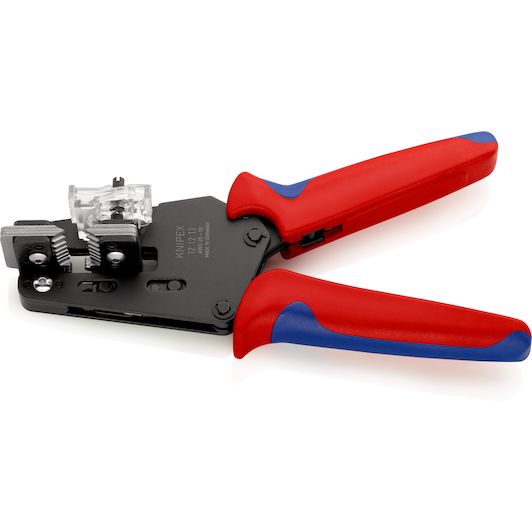

Product description
- Correct stripping even of difficult-to-remove insulation materials of PTFE, silicone, Radox®, Kapton® and rubber; also from multiple layers
- A second pair of blades holds the remaining insulation reliably in place
- Precisely matched to the conductor cross-section, exchangeable precision blades
- With length stop for even stripping lengths in serial work
- Especially for cables according to US specification (AWG)
Key features according to our expert
-
For min. cable cross-section: 0,5 mm²
-
With automatic stripping function: Yes
-
With cutting function: No
-
With crimping function: No
-
Adjustment type: Fixed settings
-
Length: 195 mm
-
For max. cable cross-section: 6 mm²
Specifications / All features
-
Brand:
KNIPEX
-
03064737
-
EAN:
4003773077534
-
Supplier number:
KNIPEX 12 12 13
- For min. cable cross-section
- 0,5 mm²
- With automatic stripping function
- Yes
- With cutting function
- No
- With crimping function
- No
- Adjustment type
- Fixed settings
- Length
- 195 mm
- For max. cable cross-section
- 6 mm²
- Awg
- 20 / 18 / 16 / 14 / 12 / 10
- Handle
- with multi-component handle
- Reach compliance
- contains SVHC
- Rohs compliance
- irrelevant
- Weight
- 450 g
- Dimensions
- 195 x 107 x 33 mm
- Tang
- burnished
