Product description

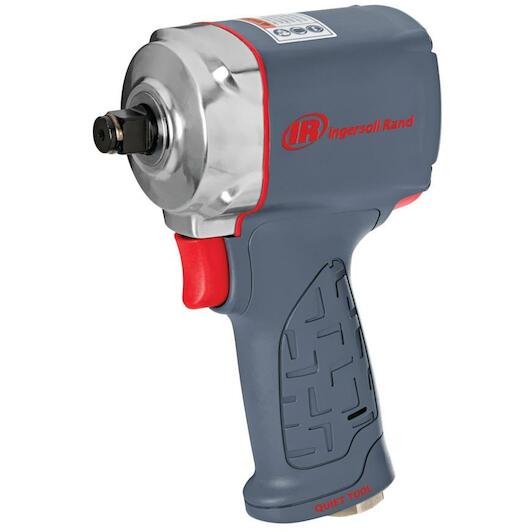

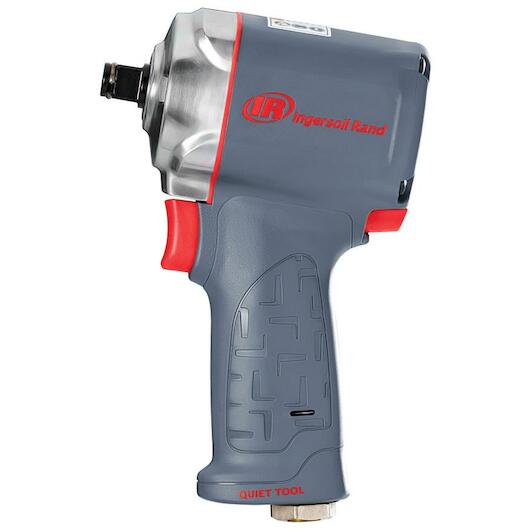

- 1/2" pneumatic ultra-compact impact spanner with max. 637 Nm torque tightening torque, power regulator and one-hand switch
- Class leader in terms of power-to-weight ratio: 868 Nm breakaway torque weighing only 1.1 kg

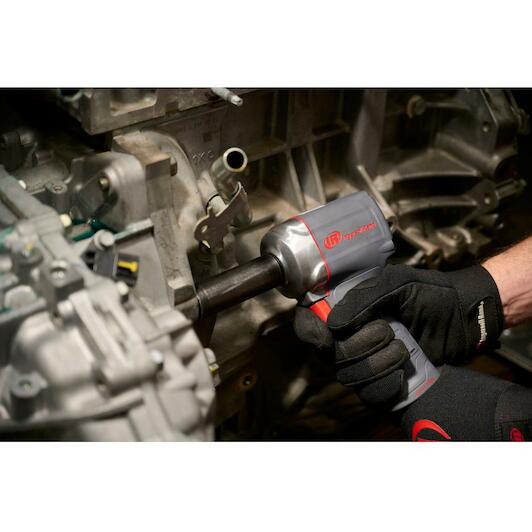

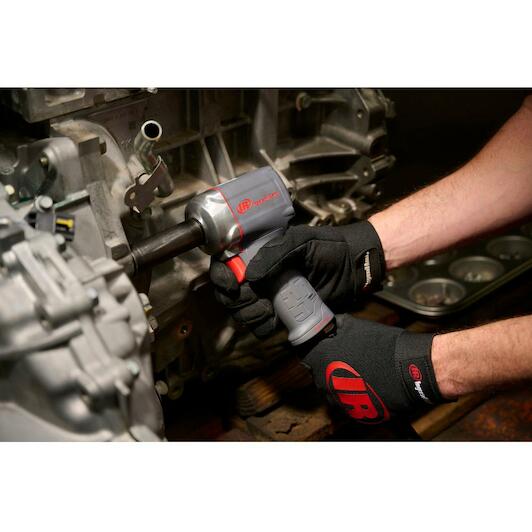

- Compact design gives the user the access and power they need, even if the task is above, below, over or around an obstacle
- Built on the Ingersoll Rand impact spanner heritage, this tool is tested to 2x the life of competitive products available today
- One-hand forward/reverse pushbutton and 3-position power regulator give you maximum control and performance
- No more annoying twisted hoses thanks to the 360° rotatable inlet
- Quiet Tool Technology ensures improved noise level
- Dual hammer mechanism helps improve comfort with lower vibrations
Key features according to our expert
-
Max. tightening torque: 515 Nm
-
Drive profile size: 1/2"
-
Type of drive profile: External square
-
Connection size (air): 1/4"
-
Speed: 8000 rpm
-
Max. breakeway torque: 868 Nm
Specifications / All features
-
Brand:
INGERSOLL RAND
-
22069851
-
EAN:
0663023151397
-
Supplier number:
INGERSOLL RAND 36QMAX
- Max. tightening torque
- 515 Nm
- Drive profile size
- 1/2"
- Type of drive profile
- External square
- Connection size (air)
- 1/4"
- Speed
- 8000 rpm
- Max. breakeway torque
- 868 Nm
- Anvil size (in)
- 1/2"
- Max. speed ( min-1)
- 8000
- Vibration (m/s²)
- 8.1
- Breakaway torque max (nm)
- 868
- Max. release torque (nm)
- 637
- Stroke frequency (1 min)
- 1300
- Forward/fast torque (nm)
- 515
- Sound pressure level (db (a))
- 87.6 / 98.6
- Air consumption (l/min)
- 680
- Length (mm)
- 117
- Connection wire
- 1/2" NPT
- Weight (kg)
- 1.18
- Working pressure (bar)
- 6.2
- Height (mm)
- 180
- Width (mm)
- 61
- Special features
- Quiet, Ultra compact
