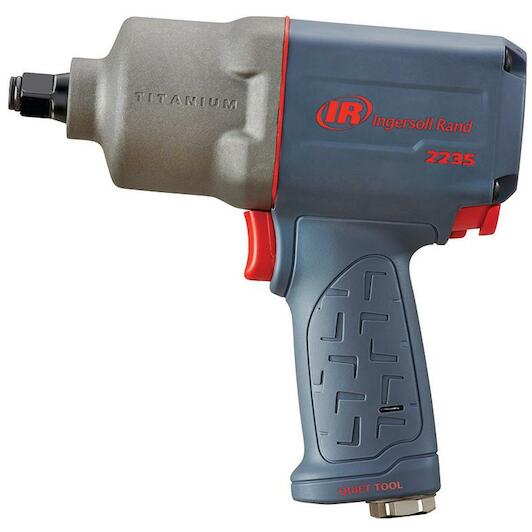

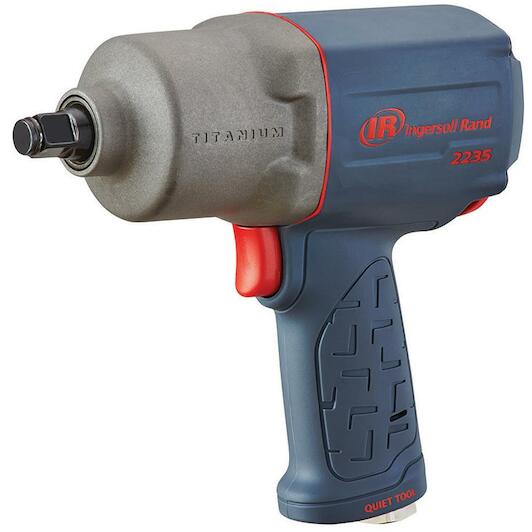

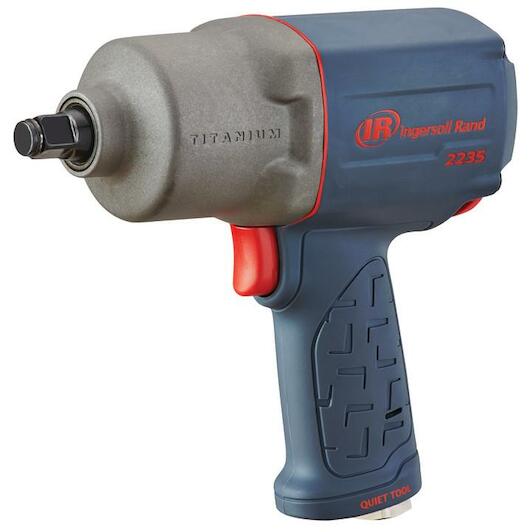

INGERSOLL RAND 2235QTIMAX pneumatic impact spanner square 1/2" 1760Nm - 47517574001

Name: INGERSOLL RAND 2235QTIMAX pneumatic impact spanner square 1/2" 1760Nm - 47517574001
Brand: INGERSOLL RAND
SKU: 06012191
Price: 610.46 EUR
Availability: PreOrder

Supplier number: INGERSOLL RAND 47517574001 | EAN 0663023119991

This product has been discontinued.

Successor to this product

INGERSOLL RAND 2236QTIMAX pneumatic impact spanner square 1/2"...

View product

✆ Talk to a specialist

Heavy power with Ingersoll Rand

Practical benefits

Break stubborn fasteners easily: With 1763 Nm of breakaway torque, you remove seized bolts and nuts without unnecessary effort.
Rapid fastening and assembly: A free speed of 8500 rpm lets you complete repetitive bolting jobs quickly and productively.
Tough and durable build: The titanium hammer case protects the internal components against harsh shop conditions and repeated impacts.

In a nutshell

The right choise for

Tackle demanding bolting tasks with confidence using the Ingersoll Rand 2235QTIMAX. Delivering 1763 Nm of nut-busting torque and a maximum fastening torque of 1180 Nm, it breaks free rusted or seized bolts effortlessly without the need for manual breaker bars. a free speed of 8500 rpm lets you speed through high-volume wheel changes, suspension work, and equipment maintenance. Built with a durable titanium hammer case, this tool stands up to harsh workshop conditions while protecting key internal mechanisms. In addition, patented Quiet technology reduces operating noise without sacrificing power, giving you a tough, productive 1/2" air impact wrench engineered for continuous shop performance.

Product information FAQ

Key features according to our expert

Max. tightening torque: 1180 Nm
Tool holder size: 1/2"
Tool holder type: External square
Connection size (air): 1/2"
Speed: 8500 rpm
Max. breakeway torque: 1763 Nm

Product description

1/2" heavy-duty pneumatic impact spanner
Durable impact spanner that can take a beating even in the toughest working environments
Fine-tuned impact mechanism and motor deliver more torque, durability and efficiency
1760 Nm breakaway torque and 1220 Nm torque thanks to powerful laminar motor
Quiet Tool technology reduces noise levels without sacrificing power
Lightweight, balanced compressed-air impact spanner weighing only 2.1 kg
Strong and durable titanium hammer housing protects internal components
Impact- and chemical-resistant housing protects against repeated drops and exposure to workshop fluids
Optimised for the vehicle repair industry, heavy trucks, tyre workshops, fleet maintenance, body shops, general industrial use, MRO (Maintenance, Repair and Overhaul), railways, heavy machinery, oil and gas, shipbuilding and construction

All Features

Max. tightening torque: 1180 Nm
Tool holder size: 1/2"
Tool holder type: External square
Connection size (air): 1/2"
Speed: 8500 rpm
Max. breakeway torque: 1763 Nm
Anvil size (in): 1/2"
Max. speed ( min-1): 8500
Vibration (m/s²): 9
Breakaway torque max (nm): 1763
Max. release torque (nm): 1220
Stroke frequency (1 min): 1220
Forward/fast torque (nm): 1180
Sound pressure level (db (a)): 88.7 / 99.7
Air consumption (l/min): 170
Length (mm): 193
Connection wire: 1/4" NPT
Weight (kg): 2.13
Working pressure (bar): 6.2
Height (mm): 183
Width (mm): 74
Special features: Quiet Tool, Titanium hammer case

Brand INGERSOLL RAND
06012191
EAN 0663023119991
Supplier number INGERSOLL RAND 47517574001

Frequently asked questions about this product

Answered by specialists

What is the maximum torque of this impact wrench?: The tool delivers a maximum forward torque of 1180 Nm and a nut-busting breakaway torque of 1763 Nm at 8500 rpm.
What drive size does the Ingersoll Rand 2235QT iMAX feature?: This pneumatic impact wrench is equipped with a standard 1/2" external square drive.
What air inlet and hose size are required?: The tool has a 1/4" NPT air inlet and requires an air supply hose with a minimum internal diameter of 3/8" (10 mm).
What does the Q indicate in 2235QT iMAX?: The Q denotes Ingersoll Rand patented Quiet technology, which reduces operational noise levels without sacrificing power performance.
What applications is this tool suitable for?: It is engineered for heavy-duty tasks in automotive repair, fleet maintenance, tire shops, and industrial assembly.
