Scope of delivery
- 1 depth stop
- 1 side handle
- 1 tube of grease
- 1 plastic case
Product description:

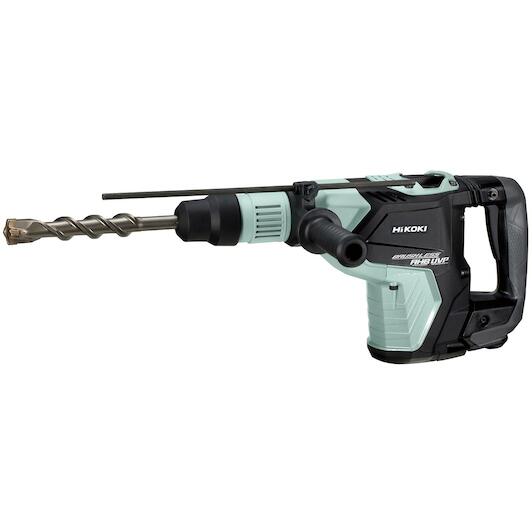

- SDS-Max drilling and demolition hammer - 7.5 kg / 40 mm / 1,150 W / 8.7 J (EPTA 05) - In PVC case.
Features:
- SDS-max
- Highest drilling speed in its class
- AHB die-cast aluminium housing
- UVP anti-vibration system with dynamic vibration damper
- Anti-vibration side and rear handle
- AC brushless motor
- No performance reduction in case of voltage fluctuation when used with generators and extension cords
- Dynamic electronic control switching that adjusts the number of strokes to the workload
- Malfunction indicator power cord
- Vario-lock system chisels
Key features:
- Safety slip clutch
- Double_insulated
- Vibration-absorbing_handles
- UVP
- AHB
- Brushless
- SDS-Max
Key features according to our expert
-
Power: 1150 W
-
Vibration level (chiselling in concrete): 7,3 m/s²
-
Tool holder type: SDS-max
-
Weight: 7,5 kg
-
Supplied in: Case
-
Vibration level (drilling in concrete): 8 m/s²
-
Max. drilling diameter (concrete): 40 mm
-
Anti-vibration system: Yes
-
Max. impact rate: 2850 /min.
-
Min. impact rate: 1430 /min.
-
Forward and reverse rotation: Yes
-
Impact energy: 8,7 J
Specifications / All features
- Power
- 1150 W
- Vibration level (chiselling in concrete)
- 7,3 m/s²
- Tool holder type
- SDS-max
- Weight
- 7,5 kg
- Supplied in
- Case
- Vibration level (drilling in concrete)
- 8 m/s²
- Max. drilling diameter (concrete)
- 40 mm
- Anti-vibration system
- Yes
- Max. impact rate
- 2850 /min.
- Min. impact rate
- 1430 /min.
- Forward and reverse rotation
- Yes
- Impact energy
- 8,7 J
- Number of strokes loaded (min.)
- 1.430 - 2850
- Dead man's switch
- 0
- Uvp (user vibration protection)
- 1
- Motor without carbon brushes
- 1
- Semi-automatic filter cleaning
- 0
- Power consumption (watts)
- 1.150
- Capcacity concrete (mm)
- 40
- Impact energy (joule)
- 8,7
- Load speed (min.)
- 250 - 500
- Capacity crown drills (mm)
- 105
- Triaxial vibration value (ah) m/s²
- 8,0
- Safety switch
- 0
- Tool holder
- SDS-Max
- Dimensions l x w x h (mm)
- 477 x 108 x 242
- Starting current limitation
- 0
- Engine brake
- 0
- Weight (kg)
- 7,5
