hikoki_dh3628dcw2z

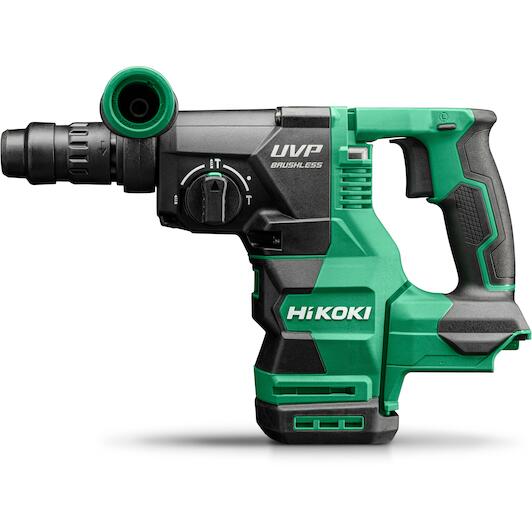

HIKOKI DH3628DCW2Z 36V cordless combi hammer SDS-Plus + interchangeable chuck in HSC IV case (without battery and charger)

Supplier number: HIKOKI DH3628DCW2Z | EAN 4966376405749
Recommended Retail Price €507.44
392.44 tax incl.
€324.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/12/2026

Cordless heavy drilling with Hikoki

Practical benefits
  • High concrete impact energy: Delivering 3.2 j of impact energy, the hammer drives drill bits up to 28 mm into solid concrete.
  • Quick release chuck system: You switch rapidly between SDS-Plus bits and standard cylindrical drills for flexible work in timber or metal.
  • Reduced vibration during work: The active anti-vibration system absorbs harsh impacts to minimise user fatigue during demanding chiselling tasks.

In a nutshell

The right choise for

The Hikoki DH3628DCW2Z tackles tough concrete and masonry drilling on active jobsites without cords. Running on 36V power, it delivers 3.2 j of impact energy and up to 4300 blows per minute, boring holes up to 28 mm in solid concrete.

Using the included keyless chuck, you switch rapidly between SDS-plus tooling and straight-shank bits for drilling timber up to 32 mm or steel up to 13 mm. Three selectable modes let you move between rotary drilling, hammer drilling, and light chiselling.

An integrated anti-vibration system reduces strain during extended demolition tasks. This 3.4 kg bare unit comes packed in a stackable hsc IV case alongside a side handle and depth gauge.



€392.44
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 36 V
  • Max. impact rate: 4300 /min.
  • Number of batteries supplied: 0
  • UN number: Not applicable
  • Weight: 3,4 kg
  • Supplied in: System case
  • Anti-vibration system: Yes
  • Vibration value (drilling in concrete): 12,1 m/s²
  • Vibration value (chiselling in concrete): 9,9 m/s²
  • Type of system case: HSC IV
  • Min. impact rate: 0 /min.
  • Max. drilling diameter (steel): 13 mm
  • Max. drilling diameter (wood): 32 mm
  • Max. drilling diameter (concrete): 28 mm
  • Impact energy: 3,2 J
  • With keyless chuck: Yes
  • Tool holder type: SDS-plus
  • With dust extraction system: No
  • Product Range: HiKOKI 36V

Contents of the delivery

  • Additional handle
  • Depth gauge
  • Drill adapter for drill chuck
  • Stackable system box 4

Product description

  • Three modes: hammer drill, drill only or hammer only, with selectable chisel position for optimum
  • Quick change between the SDS-plus chuck and the drill chuck adapter for efficient use of the hammer drill in a wide range of applications
  • Reactive Force Control (RFC) stops the motor if the tool bit is suddenly overloaded, to reduce rotation of the main unit and prevent potential injury
  • User Vibration Protection (UVP): designed to minimise vibration levels in all conditions and enhance user comfort
  • Low Vibration Handle (LVH) for optimum working comfort and grip
  • Compatible with the Cyclone dust extraction system with HEPA filter for a clean and safe working environment
  • The LED level indicator shows whether the tool is being held straight to ensure accurate drilling.
  • Auto-stop function: simply set and save the drilling time to easily and consistently drill multiple holes to the same depth
  • Soft-start control for comfortable drilling without slipping
  • MULTI VOLT battery technology: AC power, DC freedom
  • Brushless motor for high power, reduced wear and a long service life

All Features

Battery voltage
36 V
Max. impact rate
4300 /min.
Number of batteries supplied
0
Un number
Not applicable
Weight
3,4 kg
Supplied in
System case
Anti-vibration system
Yes
Vibration value (drilling in concrete)
12,1 m/s²
Vibration value (chiselling in concrete)
9,9 m/s²
Type of system case
HSC IV
Min. impact rate
0 /min.
Max. drilling diameter (steel)
13 mm
Max. drilling diameter (wood)
32 mm
Max. drilling diameter (concrete)
28 mm
Impact energy
3,2 J
With keyless chuck
Yes
Tool holder type
SDS-plus
With dust extraction system
No
No-load speed (min.)
0-950
Capcacity concrete (mm)
28
Capacity steel (mm)
13
Wood capacity (mm)
32
Motor without carbon brushes
1
Uvp (user vibration protection)
1
Weight (kg)
3.2
Product range
HiKOKI 36V
Idle speed low (min.)
0-700
Impact energy (joule)
3.2
Number of strokes loaded (min.)
0-4.300
Battery voltage (v)
36
Triaxial vibration value (ah) m/s²
12.1
Dimensions l x w x h (mm)
360x91x232

Frequently asked questions about this product

Answered by specialists
Are a battery and charger included with this rotary hammer?
No, this is a bare unit supplied without batteries or charger. It comes in an hsc IV case with a side handle, depth stop, and keyless chuck.
What are the maximum drilling capacities?
It drills up to 28 mm in concrete, 32 mm in wood, and 13 mm in steel, delivering an impact energy of 3.2 j.
Can you use straight shank drill bits with this tool?
Yes, the included quick-release chuck allows you to switch easily between SDS-plus bits and cylindrical shank drill bits.
Which batteries are compatible with the DH3628DCW2Z?
This tool runs on Hikoki 36V Multi Volt batteries. Standard 18V batteries lacking Multi Volt support are incompatible.
Does this machine include a dedicated chiselling mode?
Yes, it features three operating modes: rotary drilling, hammer drilling, and chiselling with adjustable chisel angles.
