What is the maximum drilling capacity of this rotary hammer?

With the SDS-Plus chuck, you can drill up to 28 mm in concrete, 32 mm in wood, and 13 mm in steel with an impact energy of 3.2 J.

Is a dust extraction unit included with this model?

Yes, this version comes standard with a detachable dust extraction system for clean and low-dust drilling.

Which batteries are included in this set?

It includes two 36V MultiVolt 2.5Ah (18V 5.0Ah) batteries and a fast charger in an HSC case.

Does this rotary hammer have a chiselling function?

Yes, it features 3 operating modes: rotary drilling, hammer drilling, and hammer-only chiselling.

What safety systems protect the user during operation?

The tool is equipped with RFC (Reactive Force Control) to prevent kickback on sudden jams and UVP for active vibration reduction.

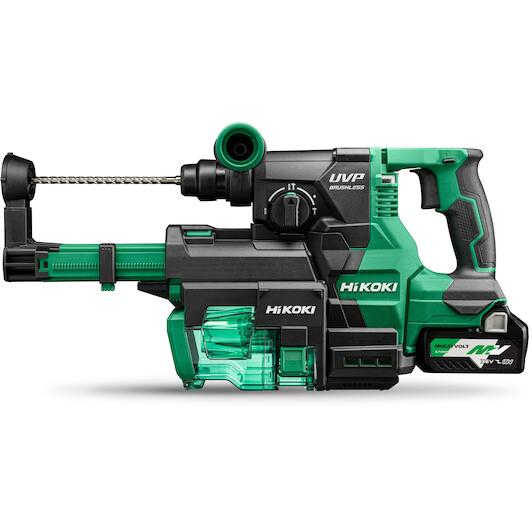

HIKOKI DH3628DAWEZ 36V SDS-Plus cordless hammer drill 3.2 J in HSC III case (2x 2.5Ah battery + charger)

Name: HIKOKI DH3628DAWEZ 36V SDS-Plus cordless hammer drill 3.2 J in HSC III case (2x 2.5Ah battery + charger)
Brand: HIKOKI
SKU: 08092904
Price: 721.56 EUR
Availability: PreOrder

Supplier number: HIKOKI DH3628DAWEZ | EAN 4966376405602

Variant

Recommended Retail Price €949.33

721.56 tax incl.

€596.33 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on HiKOKI after successful registration!

✆ Talk to a specialist

Powerful drilling in tough concrete

Practical benefits

High impact drilling power: Delivering 3,2 J of impact energy, you drill through tough concrete up to 28 mm with ease.
Clean and dustless drilling: The integrated dust extraction unit captures airborne debris directly at the tip for a clean workspace.
Superior control with Hikoki: Built-in UVP and RFC technologies reduce vibrations and sudden reactive forces to keep you working safely.

In a nutshell

The right choise for

With the Hikoki DH3628DAWEZ cordless rotary hammer, you tackle heavy-duty drilling and chiselling in concrete with clean precision. Delivering 3.2 j of impact energy on a powerful 36V platform, it easily drills up to 28 mm in concrete, while the included dust extraction system captures debris right at the drilling point. Integrated uvp dampens vibrations for greater comfort, and rfc safeguards you by stopping the tool during sudden jams. With three versatile modes for drilling, hammer drilling, and chiselling, you handle diverse renovation and construction jobs effortlessly. Supplied with two 2.5Ah batteries, a charger, and a carry case, you are ready for any demanding task.

Product information FAQ

€721.56

tax incl.

Key features according to our expert

Battery voltage: 36 V
Max. impact rate: 4300 /min.
Number of batteries included: 2
UN number: UN3481
Type of system case: HSC IV
Supplied in: System case
Anti-vibration system: Yes
Vibration value (drilling in concrete): 12,1 m/s²
Vibration value (chiselling in concrete): 9,9 m/s²
Weight: 4,2 kg
Min. impact rate: 0 /min.
Capacity (battery): 2,5 Ah
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 32 mm
Max. drilling diameter (concrete): 28 mm
Impact energy: 3,2 J
With keyless chuck: No
Tool holder type: SDS-plus
With dust extraction system: Yes
Product Range: HiKOKI 36V

Contents of the delivery

2 x BSL36A18X
UC18YSL3
Extra handle
Depth gauge
Battery cover
Dust extraction system
Stackable system box 4

Product description

Three modes: hammer drill, drill only or hammer only, with selectable chisel position for optimum
Ergonomic soft-grip handle for optimum control and user comfort
Reactive Force Control (RFC) stops the motor if the tool bit is suddenly overloaded, to reduce rotation of the main unit and prevent potential injury
User Vibration Protection (UVP): designed to minimise vibration levels under all conditions and enhance user comfort
Low Vibration Handle (LVH) for optimum working comfort and grip
Compatible with the Cyclone dust extraction system with HEPA filter for a clean and safe working environment
The LED level indicator shows whether the tool is being held straight to ensure accurate drilling.
Auto-stop function: simply record and save the drilling time to easily and consistently drill multiple holes to the same depth
Soft-start control for comfortable drilling without slipping
Brushless motor for high power, reduced wear and a long service life
MULTI VOLT battery technology: AC power, DC freedom

All Features

Battery voltage: 36 V
Max. impact rate: 4300 /min.
Number of batteries included: 2
Un number: UN3481
Type of system case: HSC IV
Supplied in: System case
Anti-vibration system: Yes
Vibration value (drilling in concrete): 12,1 m/s²
Vibration value (chiselling in concrete): 9,9 m/s²
Weight: 4,2 kg
Min. impact rate: 0 /min.
Capacity (battery): 2,5 Ah
Max. drilling diameter (steel): 13 mm
Max. drilling diameter (wood): 32 mm
Max. drilling diameter (concrete): 28 mm
Impact energy: 3,2 J
With keyless chuck: No
Tool holder type: SDS-plus
With dust extraction system: Yes
Capacity steel (mm): 13
Charger (type): UC18YSL3
Wood capacity (mm): 32
Motor without carbon brushes: 1
No-load speed (min.): 0-950
Weight (kg): 5.25
Battery capacity (ah): 2.5
Uvp (user vibration protection): 1
Product range: HiKOKI 36V
Capcacity concrete (mm): 28
Battery charging time (min): 32 min.
Impact energy (joule): 3.2
Height (mm): 247
Battery composition: Li-ion
Triaxial vibration value (ah) m/s²: 12.1
Battery voltage (v): 36
Number of strokes loaded (min.): 0-4.300
Idle speed low (min.): 0-700
Battery (type): BSL36A18

Brand HIKOKI
08092904
EAN 4966376405602
Supplier number HIKOKI DH3628DAWEZ
Warranty Up to 5 years warranty on HiKOKI after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the maximum drilling capacity of this rotary hammer?: With the SDS-Plus chuck, you can drill up to 28 mm in concrete, 32 mm in wood, and 13 mm in steel with an impact energy of 3.2 J.
Is a dust extraction unit included with this model?: Yes, this version comes standard with a detachable dust extraction system for clean and low-dust drilling.
Which batteries are included in this set?: It includes two 36V MultiVolt 2.5Ah (18V 5.0Ah) batteries and a fast charger in an HSC case.
Does this rotary hammer have a chiselling function?: Yes, it features 3 operating modes: rotary drilling, hammer drilling, and hammer-only chiselling.
What safety systems protect the user during operation?: The tool is equipped with RFC (Reactive Force Control) to prevent kickback on sudden jams and UVP for active vibration reduction.
