Are a battery and charger included with this tool?

No, this is a bare tool supplied without batteries or a charger. It comes in an HSC II stackable system case with a side handle and depth gauge.

What tool holder type does this rotary hammer use?

It features an SDS-plus chuck for quick bit changes. A keyless chuck is not included.

What is the maximum drilling capacity in concrete?

The maximum drilling diameter in concrete is 18 mm, powered by an impact energy of 1.3 J.

Which batteries are compatible with this tool?

The rotary hammer works with all HiKOKI 18V slide batteries.

Does this machine have a chiselling mode?

No, this tool features 2 modes: rotary drilling and hammer drilling. It does not have a dedicated chiselling function.

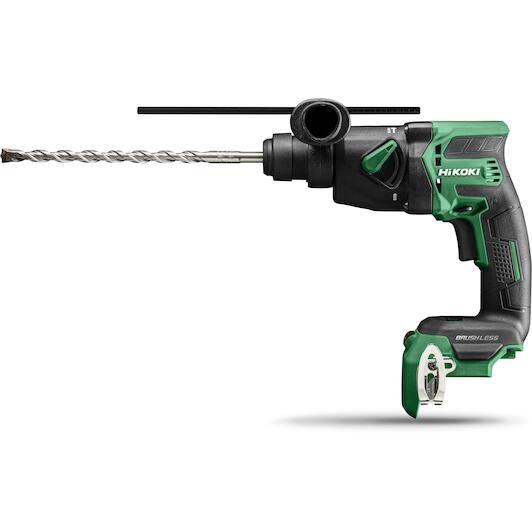

HIKOKI DH18DPBW2Z 18V cordless hammer drill with SDS PLUS 1.3 J - excluding charger and batteries - HSC II case

Name: HIKOKI DH18DPBW2Z 18V cordless hammer drill with SDS PLUS 1.3 J - excluding charger and batteries - HSC II case
Brand: HIKOKI
SKU: 03197918
Price: 214.03 EUR
Availability: PreOrder

Supplier number: HIKOKI DH18DPBW2Z | EAN 4966376333691

Variant

Recommended Retail Price €284.80

214.03 tax incl.

€176.88 excl. VAT (incl. all environmental contributions)

On order: delivered from 15/10/2026

Ordered before 20:00 - delivered as of 15/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on HiKOKI after successful registration!

✆ Talk to a specialist

Fast drilling with the Hikoki hammer

Practical benefits

Fatigue-free overhead drilling: Weighing only 1.6 kg with a balanced centre of gravity, it lets you work comfortably in tight spaces or overhead without strain.
Consistent depths on repetition: The built-in auto-stop function records drilling time so you easily achieve uniform hole depths during continuous serial work.
Reliable control and safety: A durable brushless motor combined with reactive force control protects you from sudden kickback if the bit jams.

In a nutshell

The right choise for

The Hikoki DH18DPBW2Z cordless rotary hammer gives you effortless control when drilling into concrete, wood, and steel. Weighing just 1.6 kg with a well-balanced centre of gravity, it lets you tackle overhead tasks on ceilings and in tight spaces without arm fatigue. It delivers 1.3 j of impact energy and handles drilling capacities up to 18 mm in concrete. The auto-stop function records drilling time so you achieve consistent depths during repetitive jobs, while the brushless motor and reactive force control protect against kickback if the bit jams. This 18V bare tool comes in a stackable hsc II system case with a side handle and depth gauge.

Product information FAQ

€214.03

tax incl.

Key features according to our expert

Battery voltage: 18 V
Max. drilling diameter (steel): 13 mm
Number of batteries included: 0
Weight: 1,6 kg
Type of system case: HSC II
Supplied in: System case
Anti-vibration system: No
Vibration value (drilling in concrete): 11,6 m/s²
UN number: Not applicable
Max. drilling diameter (wood): 18 mm
With dust extraction system: No
Impact energy: 1,3 J
With keyless chuck: No
Tool holder type: SDS-plus
Max. drilling diameter (concrete): 18 mm
Product Range: HiKOKI 18V

Contents of the delivery

Additional handle
Depth gauge
Stackable system box 2

Product description

Compact, lightweight machine
The centre of gravity is close to the handle, making the machine effortless to hold
Auto-stop function: simply record and save the drilling time to easily and consistently drill multiple holes to the same depth
Variable speed; the drilling and chiselling speed can be adjusted to suit the application
Integrated LED spotlight for a clear view of the work surface
Ergonomic soft-grip handle for optimum control and user comfort
2 modes: hammer drill or drill only

All Features

Battery voltage: 18 V
Max. drilling diameter (steel): 13 mm
Number of batteries included: 0
Weight: 1,6 kg
Type of system case: HSC II
Supplied in: System case
Anti-vibration system: No
Vibration value (drilling in concrete): 11,6 m/s²
Un number: Not applicable
Max. drilling diameter (wood): 18 mm
With dust extraction system: No
Impact energy: 1,3 J
With keyless chuck: No
Tool holder type: SDS-plus
Max. drilling diameter (concrete): 18 mm
Length (mm): 335
Capacity steel (mm): 13
Wood capacity (mm): 18
Sound power level (lwa) db(a): 89.6
Motor without carbon brushes: 1
No-load speed (min.): 0-1.080
Weight (kg): 2.1
Product range: HiKOKI 18V
Impact energy (joule): 1.3
Capcacity concrete (mm): 18
Idle speed low (min.): 0-800
Capacity crown drills (mm): 35
Number of strokes loaded (min.): 0-5.500
Triaxial vibration value (ah) m/s²: 10.4
Height (mm): 271

Brand HIKOKI
03197918
EAN 4966376333691
Supplier number HIKOKI DH18DPBW2Z
Warranty Up to 5 years warranty on HiKOKI after successful registration!

Frequently asked questions about this product

Answered by specialists

Are a battery and charger included with this tool?: No, this is a bare tool supplied without batteries or a charger. It comes in an HSC II stackable system case with a side handle and depth gauge.
What tool holder type does this rotary hammer use?: It features an SDS-plus chuck for quick bit changes. A keyless chuck is not included.
What is the maximum drilling capacity in concrete?: The maximum drilling diameter in concrete is 18 mm, powered by an impact energy of 1.3 J.
Which batteries are compatible with this tool?: The rotary hammer works with all HiKOKI 18V slide batteries.
Does this machine have a chiselling mode?: No, this tool features 2 modes: rotary drilling and hammer drilling. It does not have a dedicated chiselling function.
