What is the maximum cutting depth of this circular saw?

The saw reaches a maximum cutting depth of 66 mm at 90° and 48 mm at a 45° bevel angle.

Is the HiKOKI C7BUMW1Z compatible with guide rails?

Yes, the aluminium base plate is designed for direct use with compatible guide rails.

What size saw blade does this circular saw take?

It requires circular saw blades with a 190 mm diameter and a 30 mm bore size.

What safety features are built into this tool?

It features a riving knife to prevent kickback, an electric motor brake, and a 2-stage safety switch.

What is included in the scope of delivery?

The saw comes in an HSC IV system case with a 190 mm TCT blade, parallel guide, dust extraction adapter, and hex key.

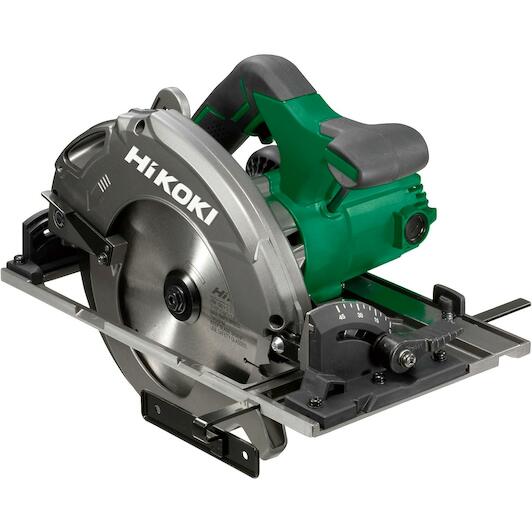

HIKOKI C7BUMW1Z circular saw 66mm 190mm 1300W in HSC IV case

Name: HIKOKI C7BUMW1Z circular saw 66mm 190mm 1300W in HSC IV case
Brand: HIKOKI
SKU: 02891817
Price: 279.28 EUR
Availability: PreOrder

Supplier number: HIKOKI C7BUMW1Z | EAN 4966376291823

Recommended Retail Price €362.24

279.28 tax incl.

€230.81 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

set

Ordered before 20:00 - delivered as of 14/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on HiKOKI after successful registration!

✆ Talk to a specialist

Perfect combination

LUMX GALAXY LED worklight 4950 lumens black/blue - LM 32245

84.19

€69.58 excl. VAT

Delivery time average 5 days.

Precision cutting power with Hikoki

Practical benefits

Deep and powerful cuts: The 1300W motor and 190MM blade allow you to cut smoothly up to 66MM in depth.
Enhanced operator safety: The integrated riving knife prevents blade binding while the fast motor brake stops the rotation quickly.
Stackable protective storage: You store and transport the tool safely on the jobsite inside the included HSC IV system case.

In a nutshell

The right choise for

With the Hikoki C7BUMW1Z circular saw, you tackle thick timber and sheet materials with power, speed, and complete control. Driven by a 1300W motor and a 190 mm tct saw blade, it delivers smooth cuts up to 66 mm deep at 90° and up to 48 mm at a 45° bevel. The integrated riving knife prevents blade binding and kickback during heavy rip cuts, while the electric motor brake stops the blade quickly for enhanced safety on the jobsite. Its aluminium base plate fits directly onto compatible guide rails for perfectly straight cuts. Everything stays protected and organized in the included stackable hsc IV system case.

Product information FAQ

€279.28

tax incl.

Key features according to our expert

Saw blade diameter: 190 mm
Max. cutting depth: 66 mm
Max. cutting depth at 90°: 66 mm
Max. cutting depth at 45°: 48 mm
Plunge saw: No
Riving knife: Yes
Supplied in: System case
Type of system case: HSC IV
Weight: 5,2 kg
Power: 1300 W

Contents of the package

Short handle (with screw) (for Europe only)
Saw blade with tungsten carbide tip (TCT)
Hex key (6 mm)
Guide (with wing nut and spring)
Dust collection system (for Europe only)
Stackable system box 4

Product description

Base plate compatible with guide rails
Auto-stop carbon brushes for a long tool life.
High level of user protection thanks to the motor brake
Features a riving knife for optimum user protection: prevents the saw blade from jamming
With a spindle lock for quick and easy blade changes
Soft-grip handle for safe and non-slip operation
Adjustable, nickel-plated aluminium plate
Additional handle for absolutely safe and precise use
Extra-long power cable (4 metres)
2-stage safety switch

All Features

Saw blade diameter: 190 mm
Max. cutting depth: 66 mm
Max. cutting depth at 90°: 66 mm
Max. cutting depth at 45°: 48 mm
Plunge saw: No
Riving knife: Yes
Supplied in: System case
Type of system case: HSC IV
Weight: 5,2 kg
Power: 1300 W
Bore diameter (mm): 30
Sound power level (lwa) db(a): 84
No-load speed (min.): 5.800
Weight (kg): 5,2
Cutting depth in mitre 45°(mm): 48
Power consumption (watts): 1.300
Saw blade diameter (mm): 190
Cutting depth 90° (mm): 66
Dimensions l x w x h (mm): 366 x 241 x 250
Engine brake: 1

Brand HIKOKI
02891817
EAN 4966376291823
Supplier number HIKOKI C7BUMW1Z
Warranty Up to 5 years warranty on HiKOKI after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the maximum cutting depth of this circular saw?: The saw reaches a maximum cutting depth of 66 mm at 90° and 48 mm at a 45° bevel angle.
Is the HiKOKI C7BUMW1Z compatible with guide rails?: Yes, the aluminium base plate is designed for direct use with compatible guide rails.
What size saw blade does this circular saw take?: It requires circular saw blades with a 190 mm diameter and a 30 mm bore size.
What safety features are built into this tool?: It features a riving knife to prevent kickback, an electric motor brake, and a 2-stage safety switch.
What is included in the scope of delivery?: The saw comes in an HSC IV system case with a 190 mm TCT blade, parallel guide, dust extraction adapter, and hex key.
