What size saw blades fit this circular saw?

You use saw blades with a 165 mm diameter and a 20 mm bore.

What is the maximum cutting depth?

The maximum cutting depth is 57 mm at 90° and 38 mm at a 45° bevel angle.

Are a battery and charger included?

No, this tool is supplied as a bare unit in an HSC IV case without batteries or charger.

Which batteries are compatible with this saw?

It works with all Hikoki 18V slide batteries and Hikoki Multi Volt batteries.

Can this tool be used as a plunge saw?

No, this is a standard handheld circular saw without a plunge mechanism.

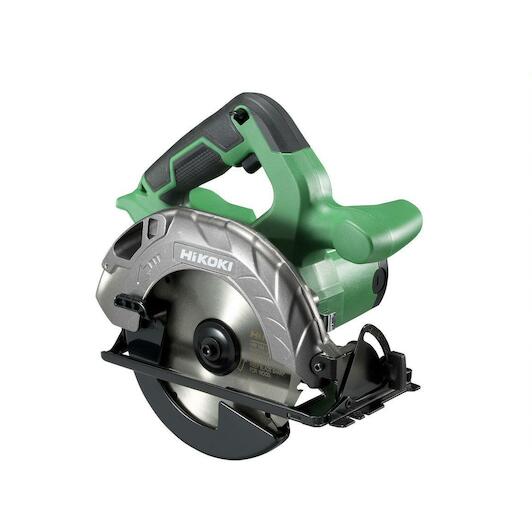

HIKOKI C1806DAW2Z 18V cordless circular saw 57mm 165mm in HSC IV case (without battery and charger)

Name: HIKOKI C1806DAW2Z 18V cordless circular saw 57mm 165mm in HSC IV case (without battery and charger)
Brand: HIKOKI
SKU: 03225776
Price: 172.48 EUR
Availability: PreOrder

Supplier number: HIKOKI C1806DAW2Z | EAN 4966376338276

Variant

Recommended Retail Price €224.30

172.48 tax incl.

€142.54 excl. VAT (incl. all environmental contributions)

On order: delivered from 19/10/2026

Ordered before 20:00 - delivered as of 19/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on HiKOKI after successful registration!

✆ Talk to a specialist

Accurate cuts with the Hikoki circular saw

Practical benefits

Clear blade line visibility: Excellent sightlines to the saw blade from both sides allow you to track your cut marking with precision.
High 57 mm cutting capacity: Cut through thick timber easily with a maximum cutting depth of 57 mm at 90° and 38 mm at 45°.
Safe and controlled handling: The integrated electric motor brake stops the spinning blade quickly, giving you enhanced safety and smooth control.

In a nutshell

The right choise for

The Hikoki C1806DAW2Z cordless circular saw gives you complete freedom of movement on the job site without trailing cables. Clear sightlines to the saw blade from both sides ensure you follow your marked cutting line with absolute precision. With a cutting depth of up to 57 mm at 90° and 38 mm at 45°, you cut through timber beams and sheet materials with ease. The integrated electric motor brake brings the 165 mm saw blade to a quick stop for safe and controlled handling. This 18V bare unit comes with a saw blade, guide, dust bag and hex wrench in a stackable hsc IV carry case.

Product information FAQ

€172.48

tax incl.

Key features according to our expert

Battery voltage: 18 V
Max. cutting depth at 90°: 57 mm
Number of batteries included: 0
Weight: 3 kg
Type of system case: HSC IV
Supplied in: System case
UN number: Not applicable
Max. cutting depth at 45°: 38 mm
Plunge saw: No
Max. cutting depth: 57 mm
Saw blade diameter: 165 mm
Product Range: HiKOKI 18V

Contents of the delivery

Saw blade
5 mm hex key
Dust bag
Guide
Stackable system box 4

Product description

Optimal visibility of the saw blade on both sides ensures highly precise cuts
Features a spindle lock for quick and easy blade changes
Extremely compact and lightweight for maximum flexibility
Robust steel base plate for easy manoeuvring on rough building sites
2-stage safety switch
Electric brake
Soft-grip handle for safe and non-slip operation

All Features

Battery voltage: 18 V
Max. cutting depth at 90°: 57 mm
Number of batteries included: 0
Weight: 3 kg
Type of system case: HSC IV
Supplied in: System case
Un number: Not applicable
Max. cutting depth at 45°: 38 mm
Plunge saw: No
Max. cutting depth: 57 mm
Saw blade diameter: 165 mm
Cutting depth in mitre 45°(mm): 38
Product range: HiKOKI 18V
Weight (kg): 3,5
No-load speed (min.): 3.800
Bore diameter (mm): 20
Engine brake: 1
Cutting depth 90° (mm): 57
Dimensions l x w x h (mm): 291x212x267
Saw blade diameter (mm): 165

Brand HIKOKI
03225776
EAN 4966376338276
Supplier number HIKOKI C1806DAW2Z
Warranty Up to 5 years warranty on HiKOKI after successful registration!

Frequently asked questions about this product

Answered by specialists

What size saw blades fit this circular saw?: You use saw blades with a 165 mm diameter and a 20 mm bore.
What is the maximum cutting depth?: The maximum cutting depth is 57 mm at 90° and 38 mm at a 45° bevel angle.
Are a battery and charger included?: No, this tool is supplied as a bare unit in an HSC IV case without batteries or charger.
Which batteries are compatible with this saw?: It works with all Hikoki 18V slide batteries and Hikoki Multi Volt batteries.
Can this tool be used as a plunge saw?: No, this is a standard handheld circular saw without a plunge mechanism.
