Which power tools are compatible with this hammer drill bit?

This bit features an SDS-max shank and fits all rotary hammers with an SDS-max chuck. It is not compatible with SDS-plus tools.

What are the exact dimensions of this drill bit?

The drill bit has a 22 mm diameter, a 600 mm working or cutting length, and an overall length of 720 mm.

Which materials can you drill with this hammer bit?

It is suitable for drilling into (reinforced) concrete, masonry, and hard natural stone.

What is the benefit of the 4-cut head design?

The 4-cutter carbide head provides fast, smooth drilling and resists jamming when hitting reinforced rebar.

HIKOKI 4100928 SDS-max drill bit 22 x 720 mm FCH

Name: HIKOKI 4100928 SDS-max drill bit 22 x 720 mm FCH
Brand: HIKOKI
SKU: 08098055
Price: 85.8 EUR
Availability: PreOrder

Supplier number: HIKOKI 4100928 | EAN 8717574064841

Recommended Retail Price €157.51

85.80 tax incl.

€70.91 excl. VAT (incl. all environmental contributions)

On order: delivered from 22/10/2026

Ordered before 20:00 - delivered as of 22/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Deep drilling with Hikoki

Practical benefits

Four carbide cutting edges: You drill smoothly through reinforced concrete and dense masonry without jamming during demanding heavy-duty drilling tasks.
Extended reach for walls: The 720 mm total length allows you to complete deep penetrations and structural through-holes with ease.
Efficient SDS-max power transfer: The robust shank transfers the full hammer energy directly into the material for fast and steady progress.

In a nutshell

The right choise for

The Hikoki 4100928 SDS-max hammer drill bit lets you power through tough building materials with speed and control. Featuring a solid carbide head with four cutting edges, it drills smoothly into reinforced concrete, solid masonry, and natural stone while resisting jamming on rebar. With a 22 mm diameter, an overall length of 720 mm, and a working length of 600 mm, you can easily drill deep through-holes for heavy cable feeds and pipe installations. The robust SDS-max shank transfers the full impact energy of your rotary hammer directly into the workpiece, ensuring fast progress on demanding construction and renovation jobs.

Product information FAQ

€85.80

tax incl.

Key features according to our expert

Diameter: 22 mm
Drill bit type: Hammer drill bit
Overall length: 720 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 600 mm

Product description

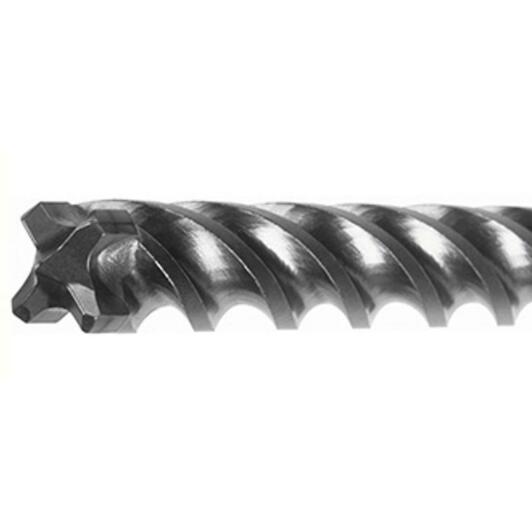

Extremely robust and aggressive solid carbide bit head, with 4 cutting edges for exceptional service life and tool life in high-strength concrete
The wear marks on both sides of the main plate act as an indicator to help you assess the size of the dowel holes
The 4-flute screw geometry ensures low-vibration drilling and minimal wear on the flutes
90° centre point for precise drilling with minimal damage to the edge of the drill hole
Ideal for use in reinforced concrete and hard natural stone

All Features

Diameter: 22 mm
Drill bit type: Hammer drill bit
Overall length: 720 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 600 mm
Diameter (mm): 22
Overall length (mm): 720
Usable length (mm): 600

Brand HIKOKI
08098055
EAN 8717574064841
Supplier number HIKOKI 4100928

Frequently asked questions about this product

Answered by specialists

Which power tools are compatible with this hammer drill bit?: This bit features an SDS-max shank and fits all rotary hammers with an SDS-max chuck. It is not compatible with SDS-plus tools.
What are the exact dimensions of this drill bit?: The drill bit has a 22 mm diameter, a 600 mm working or cutting length, and an overall length of 720 mm.
Which materials can you drill with this hammer bit?: It is suitable for drilling into (reinforced) concrete, masonry, and hard natural stone.
What is the benefit of the 4-cut head design?: The 4-cutter carbide head provides fast, smooth drilling and resists jamming when hitting reinforced rebar.
