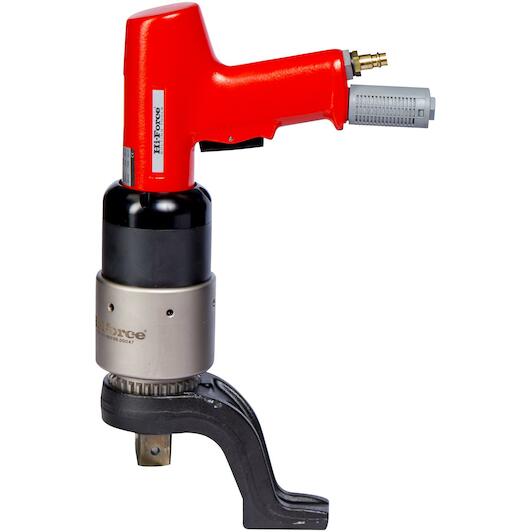

HI-FORCE TWP22S pneumatic power multiplier with pistol grip 1", 500-2200 Nm

Name: HI-FORCE TWP22S pneumatic power multiplier with pistol grip 1", 500-2200 Nm
Brand: HI-FORCE
SKU: 06003432
Price: 13573.78 EUR
Availability: PreOrder

13,573.78 tax incl.

€11,218.00 excl. VAT (incl. all environmental contributions)

HI-FORCE TWP22S pneumatic power multiplier with pistol grip 1", 500-2200 Nm

€13,573.78

On order: delivered from 25/08/2026

each

Ordered before 20:00 - delivered as of 25/08/2026
Free shipping
Delivery by DHL
Manual in your language included

Product information
Additional info

Scope of delivery

Pneumatic power multiplier with pistol grip
FRL filter
Lubrication and control unit including air inlet manometer (class 1)
Air supply stand with hose 3 metres

Product description

Air-powered, single-stage power multiplier
Lightweight and durable high-performance construction for precise tightening of bolted connections
Pistol grip design with reversible air motor for torque in both directions
Smooth, impact-free gearing minimises component wear and tear
Gear case made of high-quality, galvanised steel for increased corrosion protection
Slim gearbox design allows application in confined spaces
Precise operation enables easy positioning of the reaction arm
Average air consumption of 23 litres per second at a standard air pressure of 8 bar (49.5 ft3 per minute at 116 psi)
Reversible direction of rotation: left/right - reversible
Max. torque range: 500 to 2200Nm
Compressed air pressure: adjustable 0 to 6.3 bar
Drive square: 1"
Speed: max. rpm

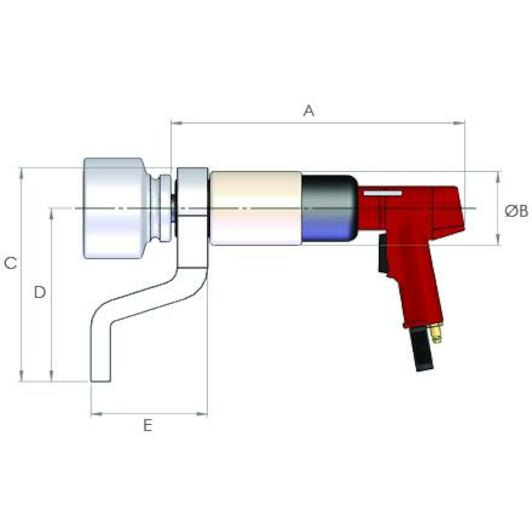

Overall length: 360 mm
Gearbox diameter: 88.0 mm
Total weight: 5.1 kg without reaction arm
Design: pistol shape
Low noise level under load: below 85 dba
Choke torque version with 5% accuracy factor
Motor power of 0.8 hp
Supplied complete with standard reaction arm
Torque-control version
