Scope of delivery
- Pneumatic power multiplier with pistol grip
- FRL filter
- Lubrication and control unit including air inlet manometer (class 1)
- Air supply stand with hose 3 metres
Product description

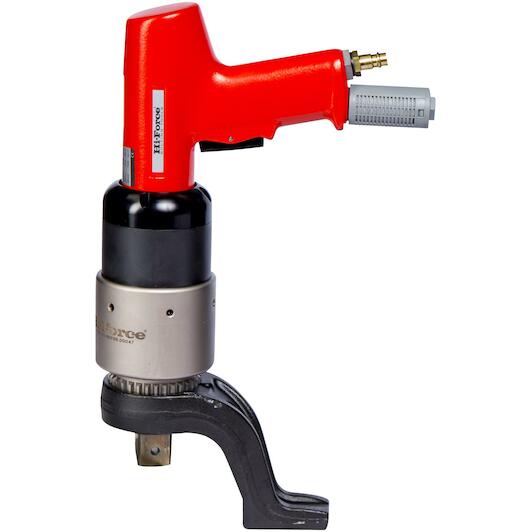

- Air-powered, single-stage force multiplier
- Lightweight and durable high-performance construction for precise tightening of bolted connections
- Pistol grip design with reversible air motor for torque in both directions
- Smooth, impact-free gearing minimises component wear and tear
- Gear case made of high-quality, galvanised steel for increased corrosion protection
- Slim gearbox design allows application in confined spaces
- Precise operation enables easy positioning of the reaction arm
- Average air consumption of 23 litres per second at a standard air pressure of 8 bar (49.5 ft3 per minute at 116 psi)
- Reversible direction of rotation: left/right - reversible
- Max. torque range: 300 to 1500 Nm
- Compressed air pressure: adjustable 0 to 6.3 bar
- Drive square: 1"
- Speed: max.12 rpm

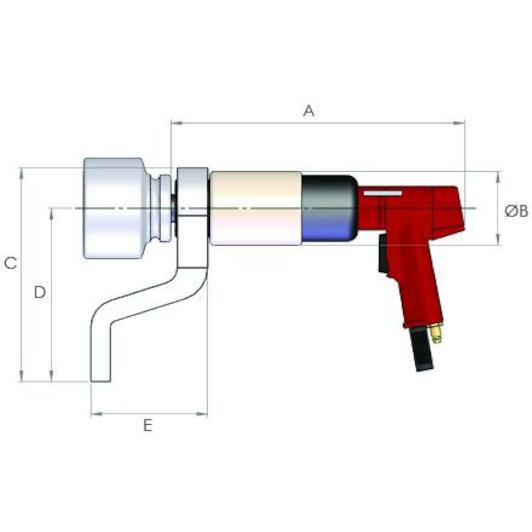

- Overall length: 343 mm
- Gearbox diameter: 88.0 mm
- Total weight: 4.7 kg without reaction arm
- Design: pistol shape
- Low noise level under load: below 85 dba
- Torque control version with 5% accuracy factor
- Motor power of 0.8 hp
- Supplied complete with standard reaction arm
- Torque-control version
Key features according to our expert
-
Max. tightening torque: 1500 Nm
-
Tool holder size: 1"
-
Connection size (air): 1"
Specifications / All features
-
Brand:
HI-FORCE
-
06003431
-
EAN:
5056388020814
-
Supplier number:
HI-FORCE TWP15S
- Max. tightening torque
- 1500 Nm
- Tool holder size
- 1"
- Connection size (air)
- 1"
