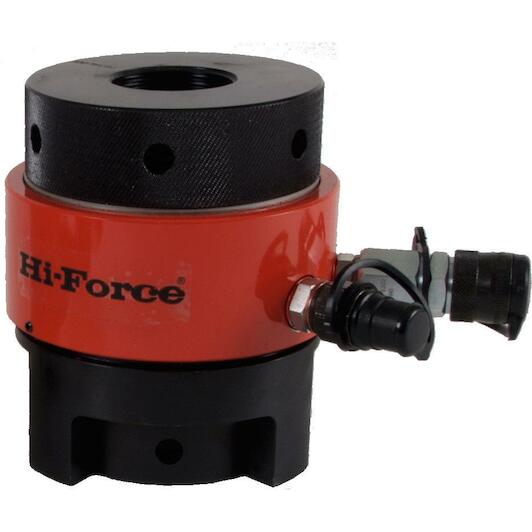

HI-FORCE STS6-M76B1 Prestressing cylinder load return M76 - 2649 kN / 270 tonnes

Name: HI-FORCE STS6-M76B1 Prestressing cylinder load return M76 - 2649 kN / 270 tonnes
Brand: HI-FORCE
SKU: 06003302
Price: 5942.25 EUR
Availability: PreOrder

5,942.25 tax incl.

€4,910.95 excl. VAT (incl. all environmental contributions)

HI-FORCE STS6-M76B1 Prestressing cylinder load return M76 - 2649 kN / 270 tonnes

€5,942.25

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Manual in your language included

Product information
Additional info

Product description

Single-acting design with manual plunger return
High-grade alloy steel construction with nitrocarbonised, corrosion-resistant plunger
Maximum stroke indicator to signal max plunger stroke
Self-activating seals for improved performance and service life at high pressure
Both input and output quick coupling for easy coupling of multiple preloading jacks
Designed for most ANSI and API flanges and some compact flanges
Interchangeable components for multiple bolt sizes within the loadcell dimension
Note: Weight refers to the cylinder and bridge only. The total weight of the complete jack depends on the dimensions of the selected threaded puller and nut washer.
Turning pins not included (Hi-Force recommends one turning pin per four tensioners)
Nut size: M76
Capacity: 2649 kN
Effective surface area: 176.6 cm²
Stroke: 15 mm
Cylinder diameter: 233 mm
Foot radius: 77 mm
Mounting height: 320 mm
Minimum space between centre bolts: 162 mm
Weight: 45.7 kg
Maximum working pressure: 1500 bar
