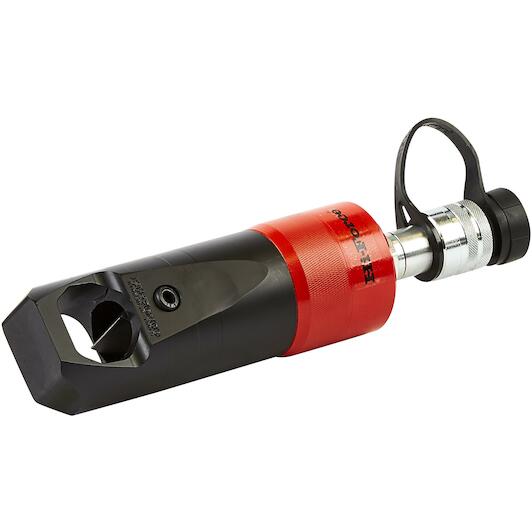

Product description
- Single-acting, spring return
- Angular design for increased clearance on flanges and flat surfaces
- High-strength steel construction
- Suitable for splitting nuts up to hardness HRc-44
- Suitable for use with most ANSI and API flanges
- Provides an ideal 'cold cutting' solution for applications where heating is not allowed
- A movable steel joint keeps the cutting edge of the blade parallel to the nut during the entire splitting process
- Compact and user-friendly
- Optional 360° rotatable coupling adapter for tight spaces, only available for use with NS104 and NS110 models
- Note: NS nut splitters are intended for use with heavy nuts, which has a minimum of 2/3 and maximum the total height of the blade.
- Capacity bolts: 27 - 33 mm.
- Nut capacity: 41 - 50 mm.
- Maximum working pressure: 700 bar.
- Weight: 10.6 kg.
- Resharpenable cutting blade: fitted as standard.
- Swivel adapter: fitted as standard.
