HI-FORCE

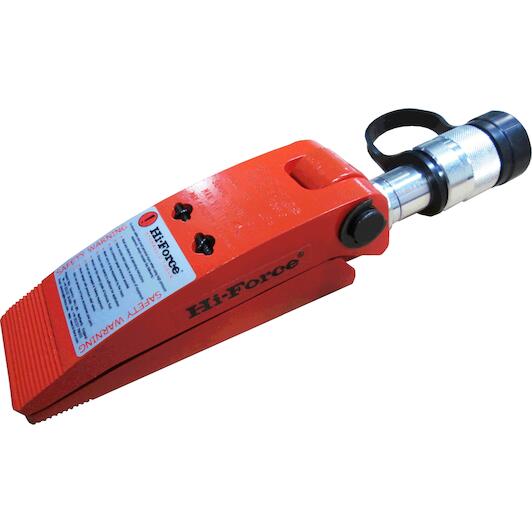

HI-FORCE JS4 wedge spreader 0.9 tonnes

1,262.43 tax incl.
€1,043.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/05/2026
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Free shipping
  • Delivery by DHL
  • Manual in your language included

Product description

  • Single-acting, spring return
  • Compact design, requires an opening of only 13 mm
  • Extremely strong, forged steel construction
  • Equipped with quick connector for easy connection to hose and pump
  • Compact, lightweight and user-friendly
  • Capacity: 0.9 tonnes
  • Working pressure: 700 bar
  • Oil capacity: 10 cm³
  • Stroke cylinder: 223 mm
  • Dimensions: 223 x 94 x 10 mm
  • Weight: 2.2 kg
  • Max. spread position: 94 mm
Key features according to our expert
  • Max. capacity: 0,9 t
  • Max. clamping height: 84 mm
  • Working pressure: 700 bar
  • Oil capacity: 10 cm³
  • Weight: 2,2 kg

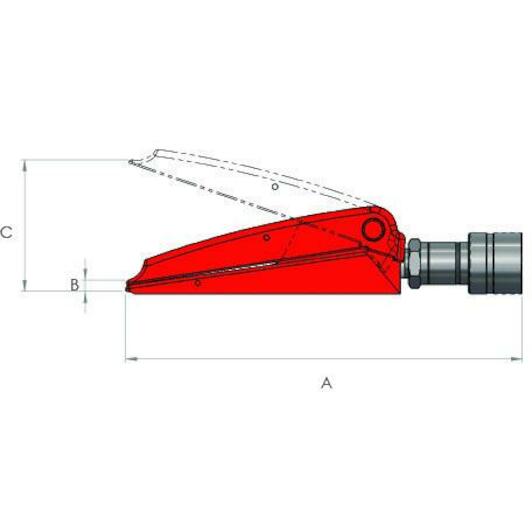

  • Technical drawing (A): 234 mm
  • Technical drawing (B): 13 mm
  • Technical drawing (C): 84 mm
Specifications / All features
  • Brand: HI-FORCE
  • EAN: 5056388011522
  • Supplier number: HI-FORCE JS4
Max. capacity
0,9 t
Max. clamping height
84 mm
Working pressure
700 bar
Oil capacity
10 cm³
Weight
2,2 kg
Technical drawing (a)
234 mm
Technical drawing (b)
13 mm
Technical drawing (c)
84 mm
