Product description

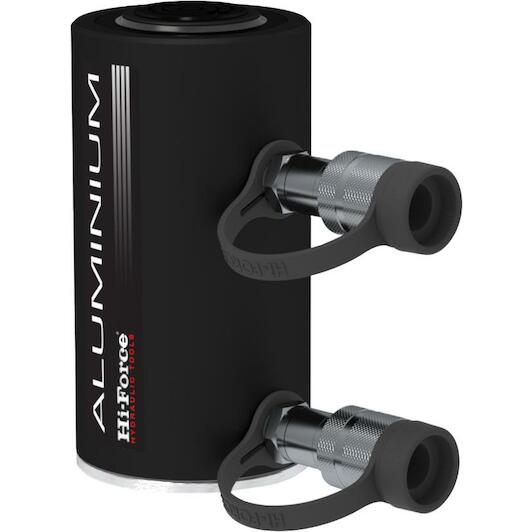

- Lightweight aluminium cylinder for applications where weight and portability are critical
- Dual-action design increases efficiency through improved performance
- Hard anodised plunger and cylinder for corrosion resistance and increased durability
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Steel footplate mounted on all models
- External pressure relief valve
- Pushing force capacity: 32 tonnes
- Stroke length: 305 mm
- Oil capacity: 1347.5cm³
- Cylinder lifting surface: 44,2 cm²
- Construction height: 458 mm
- Cylinder diameter: 105 mm
- Piston diameter: 60 mm
- Weight: 10.0kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
