Product description

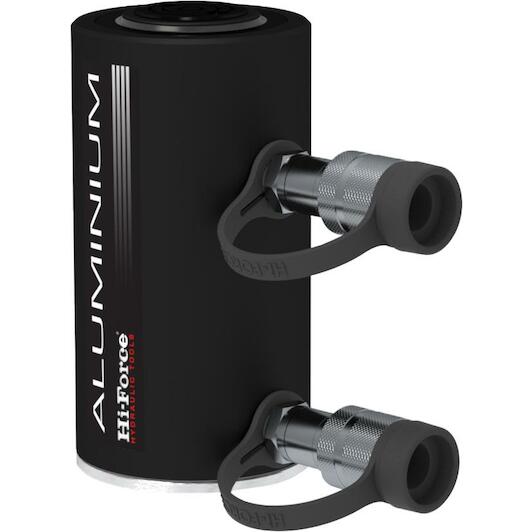

- Lightweight aluminium cylinder for applications where weight and portability are critical
- Dual-action design increases efficiency through improved performance
- Hard anodised plunger and cylinder for corrosion resistance and increased durability
- Handles fitted as standard on models of 50 tonnes and above
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Steel base plate fitted on all models
- External pressure relief valve
- Pushing force capacity: 110 tonnes
- Stroke length: 51 mm
- Oil capacity: 785.1 cm³
- Cylinder lifting surface: 153.9 cm²
- Construction height: 258 mm
- Cylinder diameter: 202 mm
- Piston diameter: 110 mm
- Weight: 22.2kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
