HI-FORCE

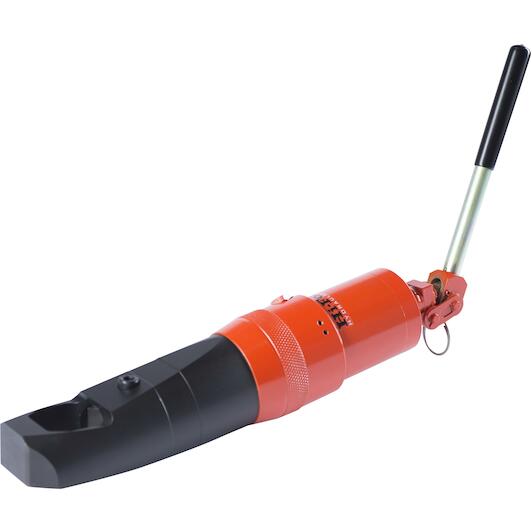

HI-FORCE HMNS104 nut splitter with integrated pump 16.3 tonnes, 17-32 mm

This product has been discontinued.

Product description

  • SW nut size from 17 to 32 mm
  • Bolt size from M10 to M22
  • Working pressure 700 bar
  • Single-acting, spring return
  • Equipped with integrated hydraulic pump with rotating lever
  • Angular design for increased clearance on flanges and flat surfaces
  • High-quality steel construction
  • Suitable for splitting nuts up to hardness HRc-44
  • Suitable for use with most ANSI and API flanges
  • Provides an ideal 'cold cutting' solution for applications where heating is not permitted
  • A movable steel joint keeps the cutting edge of the blade parallel to the nut during the entire splitting process
  • Compact and user-friendly
  • Note: HMNS nut splitters are intended for use with heavy-duty nuts, which is at least 2/3- and maximum the total height of the blade.
  • Weight: 5.8 kg
  • Resharpenable cutting blade: fitted as standard.
  • Can be operated directly without pump with 360° rotating lever
  • Removable handle
Key features according to our expert
  • Max. capacity: 16,3 t
  • Min. width across flats: 17 mm
  • Max. width across flats: 32 mm
  • Min. bolt size: M10; 1/2"
  • Max. bolt size: M22; 3/4"
  • Operation: Lever
  • Working pressure: 700 bar
  • Series: HMNS
  • Weight: 5,8 kg
Specifications / All features
  • Brand: HI-FORCE
  • EAN: 5056388007358
  • Supplier number: HI-FORCE HMNS104
Max. capacity
16,3 t
Min. width across flats
17 mm
Max. width across flats
32 mm
Min. bolt size
M10; 1/2"
Max. bolt size
M22; 3/4"
Operation
Lever
Working pressure
700 bar
Series
HMNS
Weight
5,8 kg
