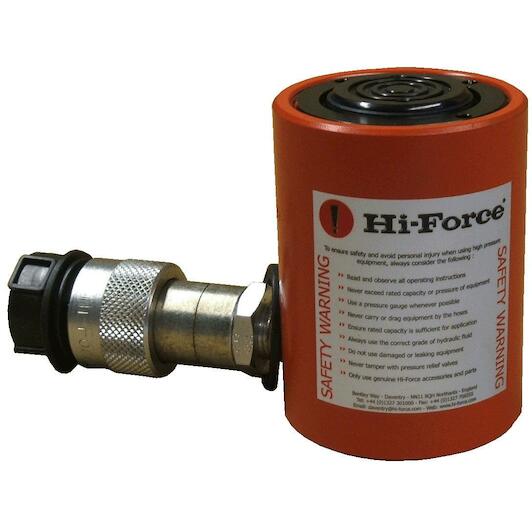

HI-FORCE HLS101 hydraulic single-acting low-height cylinder, 10 tonnes, stroke length 40 mm

Name: HI-FORCE HLS101 hydraulic single-acting low-height cylinder, 10 tonnes, stroke length 40 mm
Brand: HI-FORCE
SKU: 06002639
Price: 556.6 EUR
Availability: PreOrder

Supplier number: HI-FORCE HLS101 | EAN 5056388007112

556.60 tax incl.

€460.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/10/2026

Ordered before 20:00 - delivered as of 02/10/2026
Free shipping
Delivery by DHL
Manual in your language included

↓ Documents (2) ✆ Talk to a specialist

Consumables

HI-FORCE CF1 female coupling 3/8" NPT male thread

54.45

€45.00 excl. VAT

Delivery time average 2 days.

Product information

€556.60

tax incl.

Key features according to our expert

Diameter: 70 mm
Stroke length: 40 mm
Max. capacity: 10 t
Height: 95 mm

Product description

Single-acting, spring return
Compact design with optimum stroke lengths
Nitrocarbonised plunger for corrosion resistance
Bearing surfaces with minimal friction F
Anti-extrusion seals for improved performance at high pressure
Capacity: 10 tonnes
Stroke length: 40 mm
Oil capacity: 58 cm³
Cylinder diameter: 70 mm
Piston diameter: 38 mm
Weight: 2.4 kg
Construction height: 95 mm
Max. working pressure: 700 bar
Complete with quick-release coupling

Documents

⤓ Parts list PDF ⤓ Instruction manual PDF

All Features

Diameter: 70 mm
Stroke length: 40 mm
Max. capacity: 10 t
Height: 95 mm

Brand HI-FORCE
06002639
EAN 5056388007112
Supplier number HI-FORCE HLS101
