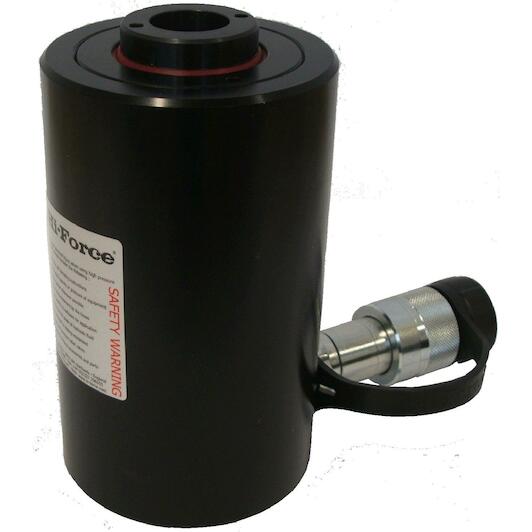

Product description
- Lightweight aluminium cylinders for applications where weight and portability are critical
- Capacity of 18 tonnes
- Stroke length of 51 mm
- Working pressure 700 bar
- Single acting, spring return
- Hollow plunger for tension, pressure and clamping applications
- Hard anodised plunger and cylinder for corrosion resistance and increased durability
- Steel base plate to protect cylinder housing
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Slotted saddles fitted as standard on all models.
- Oil capacity: 129 cm³
- Construction height: 171 mm
- Cylinder diameter: 98 mmm
- Piston diameter: 45 mmm
- Weight: 3.4 kg
- Inner diameter plunger: 26 mm
- Connection plunger: m8 X 10
