HI-FORCE

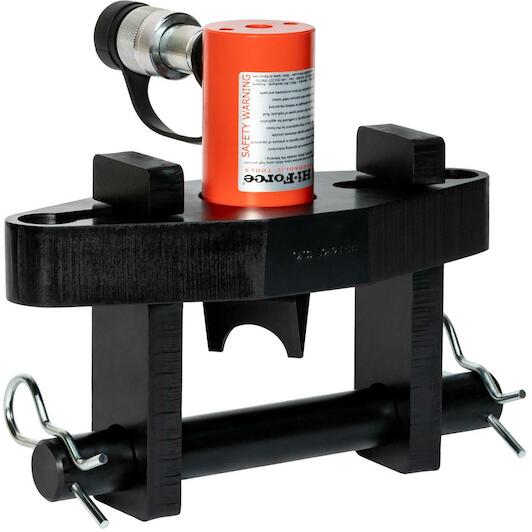

HI-FORCE HFS50-TK hydraulic double flange spreader set, 2x 4.5 t, stroke length 75 mm

6,575.99 tax incl.
€5,434.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
set

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Manual in your language included

Scope of delivery

  • 2x flange spreader with T-piece
  • HP110 pump
  • 2x HSS53 single-acting cylinder
  • Hoses
  • Carrying case

Product description

  • Single-acting, spring return cylinder, for fast and safe operation
  • Suitable for opening flanges up to 2 x 57 mm thick
  • Suitable for mounting on flanges with maximum bolt size of 29 mm
  • Spreading range of 61 to 155 mm
  • Lightweight, ergonomic design and user-friendly
  • Double spreader set
  • Supplied complete with manual pump and hose incl. coupling
  • Provides parallel spreading of flanges with larger flange dimensions
  • Oil capacity: 48 cm²
Key features according to our expert
  • Max. capacity: 2 x 4.5 t
  • Max. flange thickness: 2 x 57 mm
  • Stroke length: 75 mm
  • Min. bolt hole diameter: 19 mm
  • Max. bolt hole diameter: 29 mm
  • Spreading capacity: 3-29 mm
  • Weight: 27,5 kg
Specifications / All features
  • Brand: HI-FORCE
  • EAN: 5056388006238
  • Supplier number: HI-FORCE HFS50-TK
Max. capacity
2 x 4.5 t
Max. flange thickness
2 x 57 mm
Stroke length
75 mm
Min. bolt hole diameter
19 mm
Max. bolt hole diameter
29 mm
Spreading capacity
3-29 mm
Weight
27,5 kg
