Product description

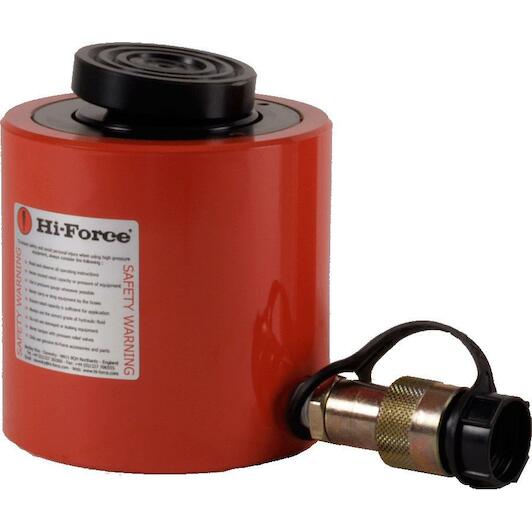

- Hydraulic lock nut cylinder
- Single acting, load return
- Capacity of 203 tonnes
- Stroke length of 50 mm
- Working pressure 700 bar
- The mechanical locknut allows the load to be locked for a longer period of time
- Suitable for vertical lifting only
- Screwed plunger fitted with tilting saddle as standard to reduce the risk of side loading
- Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Stroke restriction port to limit the stroke length
- Optional pivot pin for easy rotation of the retaining ring: TTB14
- Oil capacity: 1.45 l

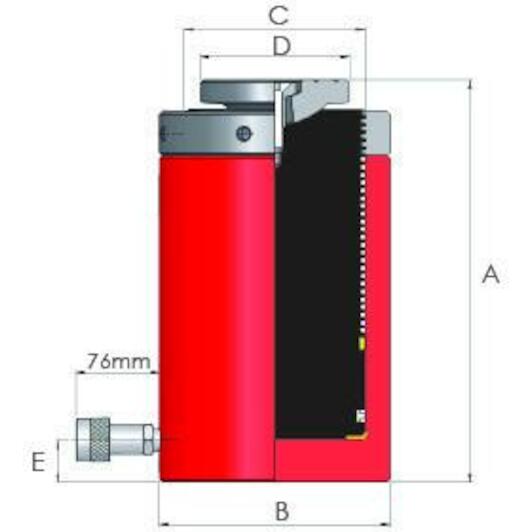

- Construction height: 261 mm
- Cylinder diameter: 254 mm
- Piston diameter: 190 mm
- Weight: 101 kg
