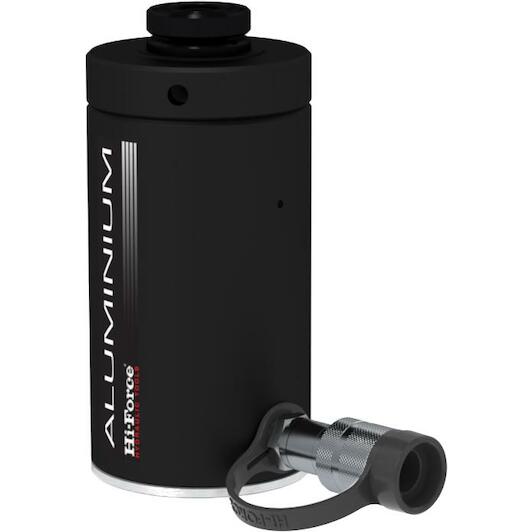

HI-FORCE HFA1006 single-acting aluminium lock nut cylinder, 110 tonnes, stroke length 152 mm

Name: HI-FORCE HFA1006 single-acting aluminium lock nut cylinder, 110 tonnes, stroke length 152 mm
Brand: HI-FORCE
SKU: 06002492
Price: 6373.07 EUR
Availability: PreOrder

Supplier number: HI-FORCE HFA1006 | EAN 5056388005866

6,373.07 tax incl.

€5,267.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL
Manual in your language included

↓ Documents (1) ✆ Talk to a specialist

Product information

€6,373.07

tax incl.

Key features according to our expert

Diameter: 202 mm
Stroke length: 152 mm
Max. capacity: 110 t
Height: 378 mm

Product description

Lightweight aluminium cylinder for applications where weight and portability are critical
Capacity of 110 tonnes
Stroke length of 152 mm
Working pressure 700 bar
Single-acting, spring return
Mechanical locking nut allows the load to be locked in place for extended periods of time
Hard anodised plunger and cylinder for corrosion resistance and increased durability
Bearing surfaces with minimal friction
Anti-extrusion seals for improved high-pressure performance
Tilt saddles fitted as standard on all models
Steel base plate fitted as standard on all models
Lifting eyes fitted on all 110-tonne models
Integral stop ring
Oil capacity: 72340 cm³
Cylinder lifting surface: 153,9 cm²
Construction height: 378 mm
Cylinder diameter: 202 mm
Piston diameter: 100 mm
Weight: 30 kg
