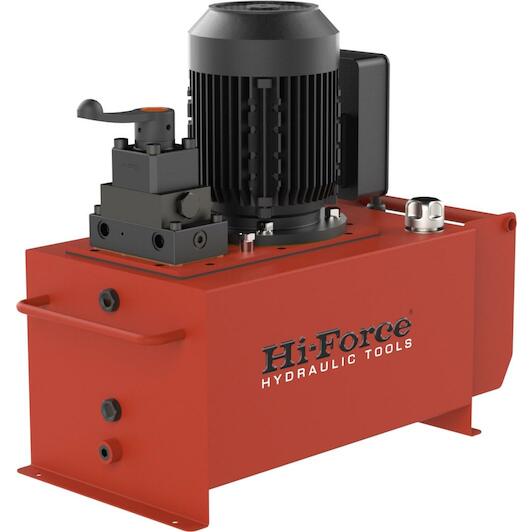

Product description
- Working pressure 700 bar
- Two-stage design
- 60 litre oil reservoir
- Load holding function on 3- and 4-way versions
- Externally adjustable pressure control valve for pressure settings up to 700 bar
- Completely enclosed, fan-cooled, low-noise electric motor
- Note: All models with 380/440V are suitable for operation on both 50 Hz and 60 Hz.
- Oil yield 1st stage: 17 l/min
- Oil output: 2nd stage: 2 l/min
- Switchover pressure 70 bar
- Weight: 120 kg
