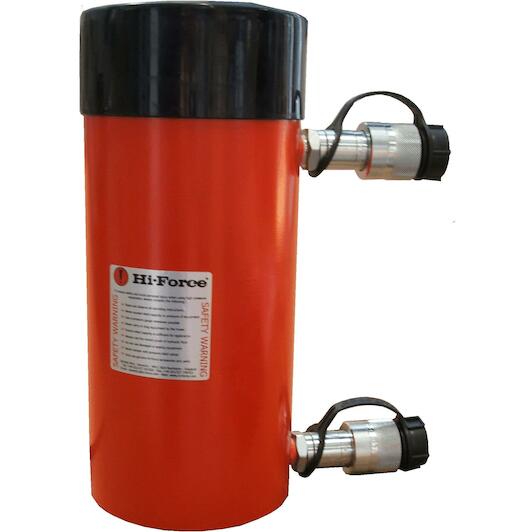

HI-FORCE HDA506 double-acting heavy-duty cylinder 50 tonnes stroke length 152 mm

Name: HI-FORCE HDA506 double-acting heavy-duty cylinder 50 tonnes stroke length 152 mm
Brand: HI-FORCE
SKU: 06002410
Price: 3068.56 EUR
Availability: PreOrder

Supplier number: HI-FORCE HDA506 | EAN 5056388004111

3,068.56 tax incl.

€2,536.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Manual in your language included

↓ Documents (2) ✆ Talk to a specialist

Consumables

HI-FORCE CF1 female coupling 3/8" NPT male thread

54.45

€45.00 excl. VAT

Delivery time average 2 days.

Product information

€3,068.56

tax incl.

Key features according to our expert

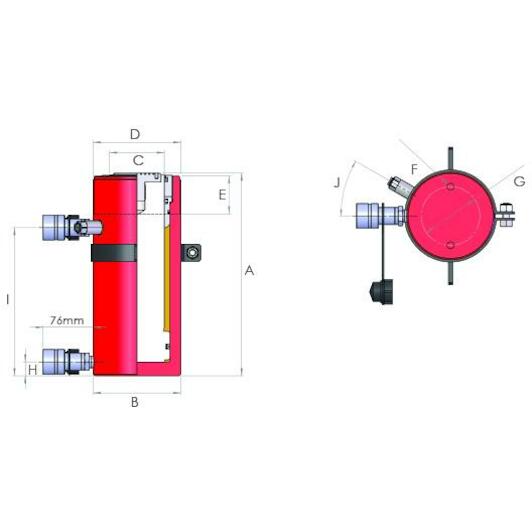

Diameter: 127 mm
Stroke length: 152 mm
Height: 295 mm

Product description

Double-acting heavy-duty cylinder
Capacity of 50 tonnes
Stroke length of 152 mm
Working pressure 700 bar
Double-acting design increases efficiency through improved performance.
Substantial pulling force in return mode for increased versatility
Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
Bearing surfaces with minimal friction
Return side equipped with pressure relief valve
Anti-extrusion seals for improved high-pressure performance
Flat saddle, collar thread and plunger thread as standard on all models up to 203 tonnes
Lifting ring standard on models from 50 to 109 tonnes
Note: mounting holes for positioning not suitable for full load
