Product description

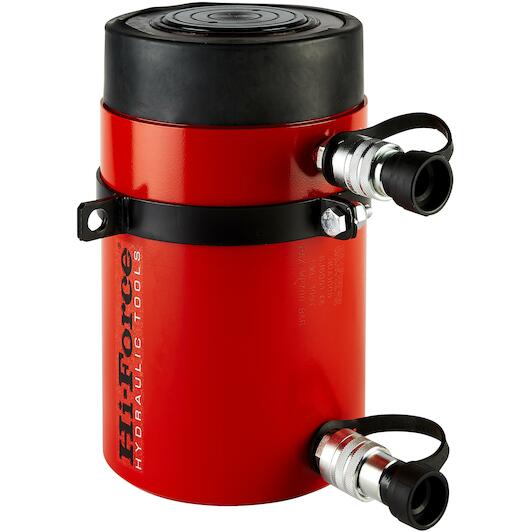

- Double-acting heavy-duty cylinder
- Capacity of 520 tonnes
- Stroke length of 152 mm
- Working pressure 700 bar
- Double-acting design increases efficiency through improved performance.
- Substantial pull in return mode for increased versatility
- Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
- Bearing surfaces with minimal friction
- Return side equipped with pressure relief valve
- Anti-extrusion seals for improved performance at high pressure
- Interchangeable tilting seat fitted as standard on all models from 326 tonnes and above
- Lifting lugs fitted as standard on models from 152 to 1012 tonnes
- Note: mounting holes for positioning not suitable for full load
