HI-FORCE

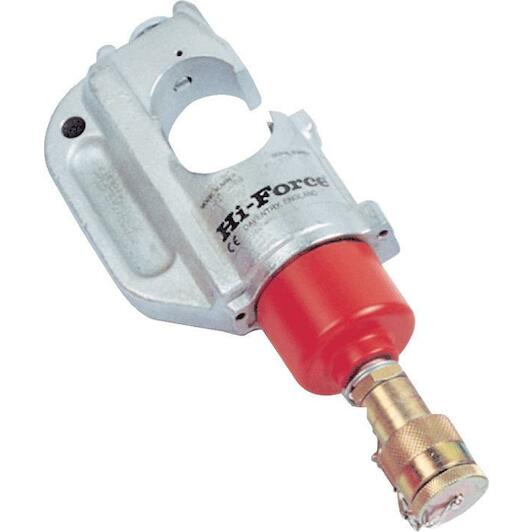

HI-FORCE CH30 pneumatic cable crimping tool with 30 mm C-head and die set 35-400 mm² in case

2,842.99 tax incl.
€2,349.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Manual in your language included

Scope of delivery

  • Crimping pliers with open C-head 30 mm, 12-tonne
  • Tools: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
  • Carrying case

Product description

  • Open "C" crimp head design with parallel guide
  • 180° rotating head for easy access in confined spaces
  • Equipped with quick coupling for easy connection to 700-bar hydraulic pump
  • Supplied with standard sets of dies in carrying case
  • Compatible with foot-operated pump HP-FP
  • Suitable for crimping cables up to 400 mm²
  • Weight: 4 kg
  • Shrinkage force: 12 tonnes
Key features according to our expert
  • Shrinkage: 12 t
  • For min. cable cross-section: 35 mm²
  • For max. cable cross-section: 400 mm²
  • Working pressure: 700 bar
  • Length: 220 mm
  • C-head opening: 30 mm
  • Suitable for DIN: 35-400 mm²
  • Weight: 4 kg

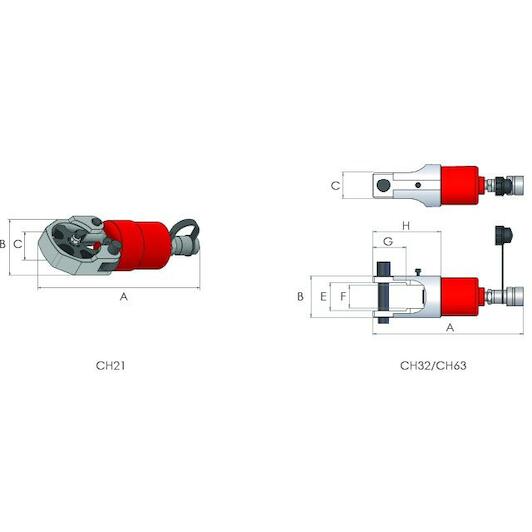

  • Technical drawing (A): 294 mm
  • Technical drawing (B): 105 mm
  • Technical drawing (C): 43 mm
Specifications / All features
  • Brand: HI-FORCE
  • EAN: 5056388001103
  • Supplier number: HI-FORCE CH30
Shrinkage
12 t
For min. cable cross-section
35 mm²
For max. cable cross-section
400 mm²
Working pressure
700 bar
Length
220 mm
C-head opening
30 mm
Suitable for din
35-400 mm²
Weight
4 kg
Technical drawing (a)
294 mm
Technical drawing (b)
105 mm
Technical drawing (c)
43 mm
