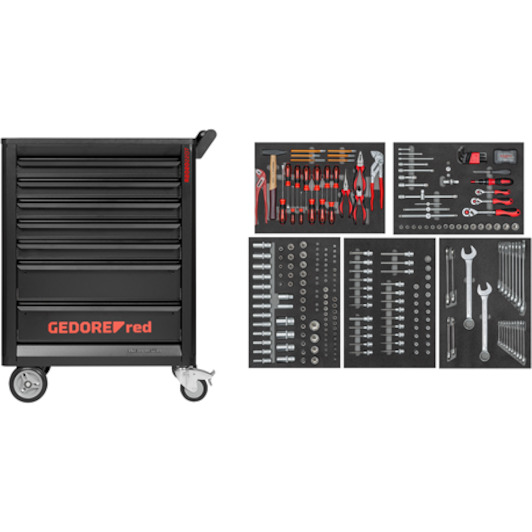

GEDORE RED R22071005 GEDmaster tool trolley black with 7 drawers (5 filled) 273-piece - 3301678

Scope of delivery

• Tool trolley GEDMaster 7 drawers1/4
• " 2C-reversible ratchet L.150mm1/4
• " Extension piece L.50mm1/4
• " Extension piece L.100mm1/4
• " Extension piece L.150mm1/4
• " Sliding T-handle with slider L.115mm1/4
• " Universal coupling L.33mm1/4
• " Drive handle L.
• 62mm2C-handle1/4
• " Bit adapter square x hex L.24,7mm1/4
• " Bit-box SL+PH+PZ+TX+six-sided 32 pieces1/4
• " Ratchet screwdriver with telescopic blade3/8
• " 2C-reversible ratchet L.180mm3/8
• " Hexagon socket spanner 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
• 223/8" Extension piece L.125mm3/8
• " Extension piece L.150mm3/8
• " Sliding T-handle with sliderConverter
• 3/8" x 1/2" square L.44mmReducer
• 3/8" to 1/4"
• 1/2" 2C-reversible ratchet L.250mm1/2
• " Universal coupling L.66mm1/2
• " Extension L.75mm1/2
• " Extension L.125mm1/2
• " Extension L.250mm1/2
• " Sliding T-handle with sliderSet of
• hexagonal hexagonal hex keys.5-10mm 9 pieces1/4
• " Hexagon socket spanner 4 4.5 5.5 6 7 8 9 10 11 12 13 14 L.25mm1/4
• " Hexagon socket spanner 4 4.5 5 5.5 6 7 8 9 10 11 12 13 L.50mm1/4
• " Hexagon socket spanner TX E5 E6 E7 E8 E10 L.25mm1/4
• " Screwdriver bit socket spanner 3 4 5 6 L.37mm1/4
• " Screwdriver bit socket spanner PH1 PH2 L.37mm1/4
• " Screwdriver bit socket spanner PZ1 PZ2 L.37mm1/4
• " Screwdriver bit socket spanner SC 5.5 6.5 L.37mm1/4
" Screwdriver
• bit socket spanner TX BO T10 T15 T20 T25 T27 T30
• 1/4" Screwdriver bit socket spanner TX T10 T15

  Product description Scope of delivery

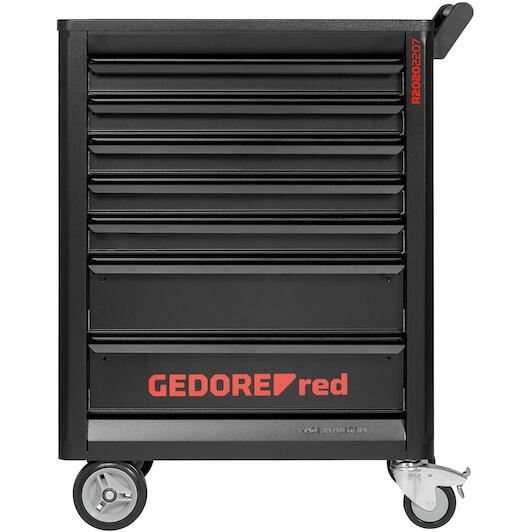

  • Housing: made of sheet steel, corrosion-resistant and scratch-resistant powder-coated
  • Work platform with lid made of ABS plastic with 4 compartments for small parts
  • Manoeuvrable and easy to steer thanks to travel and steering handle
  • Side panels with Euro perforation 10 x 38 mm for attaching accessories
  • Drawers: Central locking with cylinder lock
  • Each drawer with safety lock, one-hand operation
  • 5 drawers with internal dimensions (W 563 x D 398 x 70 mm)
  • 2 drawers with internal dimensions (W 478 x D 310 x 74 mm)
  • All drawers with full extension and ball bearing slide rails
  • Loading capacity per drawer 40 kg
  • GEDORE chassis: total load capacity 400 kg
  • 2 roller bearings GEDORE high performance castors (fixed swivel castors Ø 140 mm)
  • 2 ball-bearing GEDORE smooth-running castors (swivel castors Ø 100 mm), one of which has a total brake
  • GEDORE trapezoidal axle construction ensures smooth operation, manoeuvrability and directional stability even at maximum loads
  • Range: extensive range for industry, trade, automotive and the advanced do-it-yourselfer
  • Tools with metric dimensions
  • Clearly arranged in GEDORE red foam modules
  • With tool check system: completeness check using two-colour foam inserts
