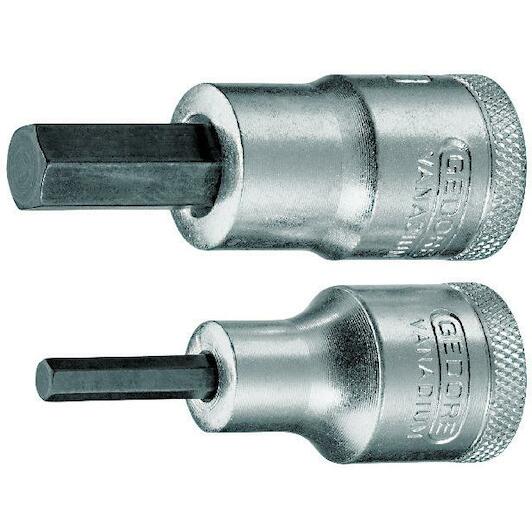

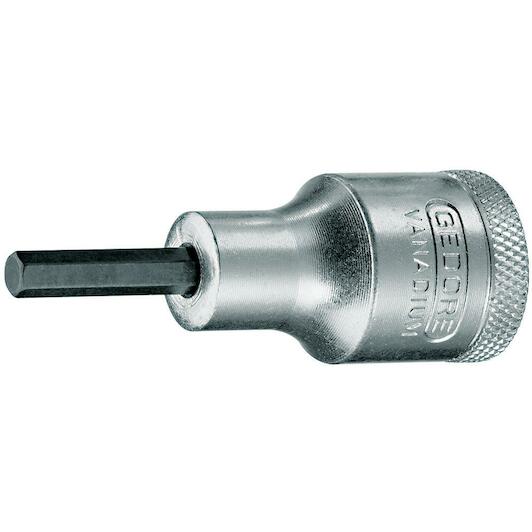

Product description
- Design in accordance with DIN 7422
- Internal drive square in accordance with DIN 3120 - C 12,5
- ISO 1174, with ball catch slot
- For hand use, serrated edge
- Chrome-plated
- With pressed-in pin made of GEDORE vanadium special steel, manganese phosphated
- No.
- IN 19 17 for oil filler and drain plug
Key features according to our expert
-
Length: 60 mm
-
Type of drive profile (bit): Hexagon
-
Blade thickness: Not applicable
-
Connection size: 1/2"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
Bit tip: HEX 10 mm
-
Drive profile size (bit): 10 mm
Specifications / All features
-
Brand:
GEDORE
-
41890690
-
EAN:
4010886615379
-
Supplier number:
GEDORE 6153740

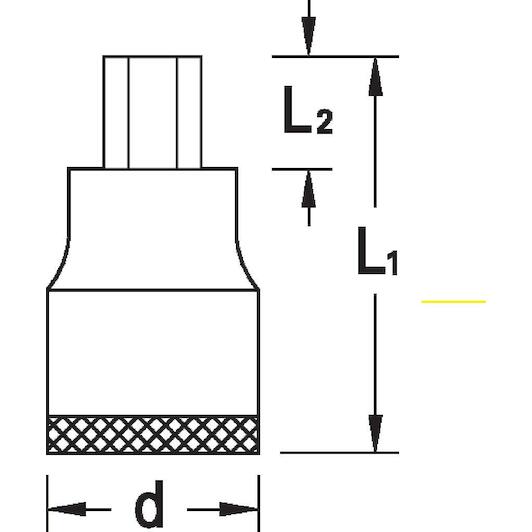

- Length
- 60 mm
- Type of drive profile (bit)
- Hexagon
- Blade thickness
- Not applicable
- Connection size
- 1/2"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Bit tip
- HEX 10 mm
- Drive profile size (bit)
- 10 mm
- Key width 1 [mm]
- 10
- Socket spanner ø drive square
- 22.5 mm
- Surface area
- chromed
- Drive intake, square [inch].
- 1/2"
- Point length
- 22.0 mm
- Standard
- DIN 7422DIN 3120 - C 12,5 ISO 1174
- Drive mounting, square [metric]
- 12.5 mm
- Socket spanner length
- 38.0 mm
- Material
- chrome vanadium steel
- Overall length [mm]
- 61 mm
