GEDORE ETQR 12-K-D electronic torque spanner and angle spanner with display + cable - 3267733

Name: GEDORE ETQR 12-K-D electronic torque spanner and angle spanner with display + cable - 3267733
Brand: GEDORE
SKU: 08121430
Price: 8522.95 EUR
Availability: PreOrder

Supplier number: GEDORE 3267733 | EAN 4010886957554

Recommended Retail Price €15,874.47

8,522.95 tax incl.

€7,043.76 excl. VAT (incl. all environmental contributions)

On order: delivered from 22/10/2026

Ordered before 20:00 - delivered as of 22/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information

€8,522.95

tax incl.

Key features according to our expert

Max. tightening torque: 12 Nm
Min. tightening torque: 1,5 Nm
Drive profile size: 9 x 12 mm
VDE approved: No
With safety colour code 1000V: No
ESD: No
Display: Digital

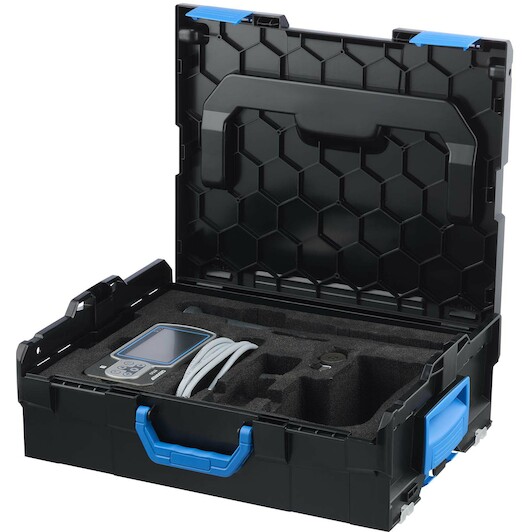

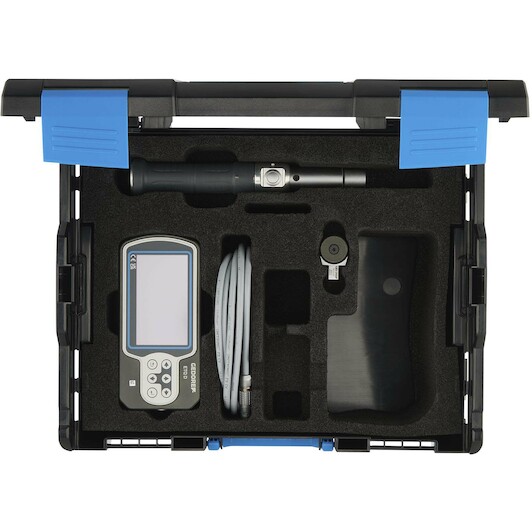

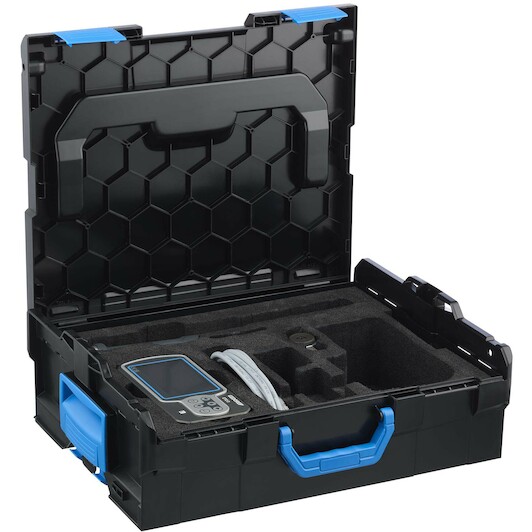

Scope of delivery

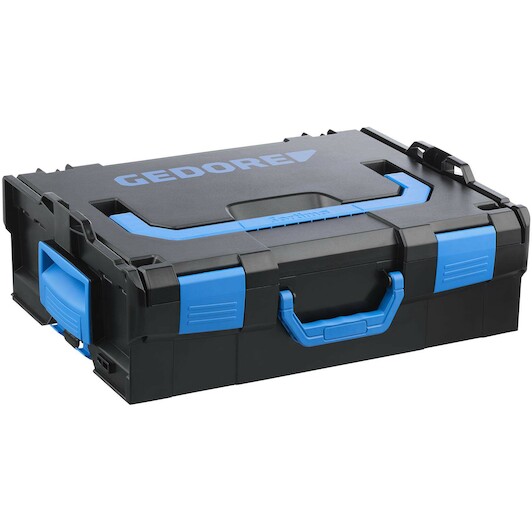

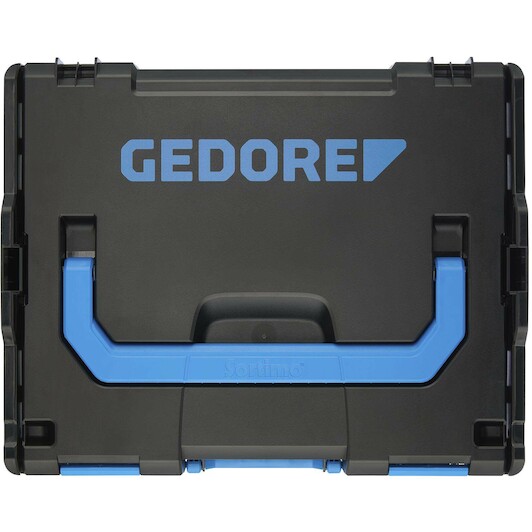

L-BOXX 136
ETQR-12
plug-in ratchet
connection cable
display unit without scanner
software

Product description

Electronic torque spanner and angle spanner for quality and analysis applications
Enables monitoring of tightening including curve evaluation, directly on the spanner, for analysis and quality assurance
Unique is that the display is separate from the torque spanner and connected by cable, offering higher precision, especially at low torques
Controlled tightening in the range of 1.5-12 N-m
Highly accurate with a measurement accuracy of +/- 1% (torque and angular rotation), meets high industrial requirements
Supports all common measuring methods (torque, angular rotation, yield strength, further turning (VDI-compliant), unscrew-tightening, flow charts)
Storage of up to 9,999 measurement data and curves in the large internal memory
Data transmission wirelessly via WLAN or USB cable
Work instructions and images can be loaded to guide employees; measurement data can be sent back via WLAN
Start work instructions via menu or integrated 2D scanner (optional)
Optional connection to CAQ systems possible
Angular and high-contrast 4.3" touch display for intuitive and fast operation
Large display for direct on-site recall and evaluation of measurement data and torque curves
Signalling visual (display), haptic (vibration) and acoustic (sound)
Display unit can be placed on work surface with stand or worn on the body with belt clip
Powerful lithium-ion battery for long operating time without memory effect
Comes with factory calibration certificate according to GEDORE standard GTTWN001, traceable to national standards
Calibration according to DKD-R 3-7 with certificate and accreditation symbol (optional)
Version 6 N-m calibration according to DIN EN ISO 6789-2 Type I Class E
Programmer-friendly with different measuring heads for insertion tools
Free evaluation software for PC included
