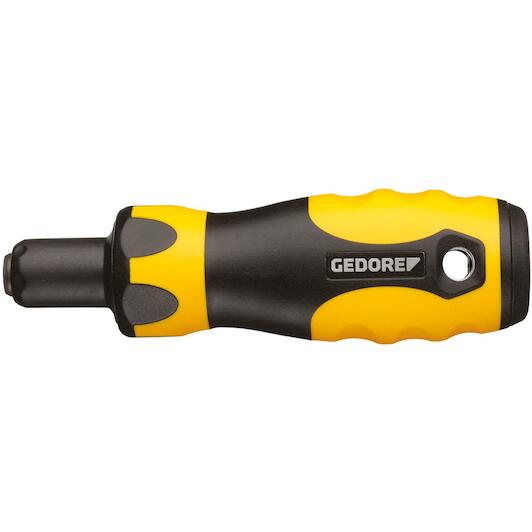

GEDORE ESD 1350 FH torque screwdriver type PGNE FS 1/4" 2.5-13.5 Nm - 2927829

Name: GEDORE ESD 1350 FH torque screwdriver type PGNE FS 1/4" 2.5-13.5 Nm - 2927829
Brand: GEDORE
SKU: 02716306
Price: 67.8 EUR
Availability: PreOrder

Supplier number: GEDORE 2927829 | EAN 4010886950074

Recommended Retail Price €116.79

67.80 tax incl.

€56.03 excl. VAT (incl. all environmental contributions)

On order: delivered from 05/10/2026

Ordered before 20:00 - delivered as of 05/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Consistent fastening precision with the Gedore torque screwdriver

Practical benefits

Reliable overtightening protection: The precision slipping mechanism slips noticeably once the preset value is reached, preventing you from stripping threads or damaging fragile assemblies.
Safe for sensitive electronics: Built to ESD and EPA standards, it ensures you assemble electrostatically sensitive components and circuit boards without risk of electrostatic damage.
Comfortable higher torque control: The included cross-handle allows you to apply tightening torque up to 13,5 Nm easily with reduced operator strain.

In a nutshell

The right choise for

Work with complete confidence on delicate electronics using the Gedore esd 1350 fh pgne 13.5 fs torque screwdriver. The precision ball mechanism slips noticeably once the preset torque between 2.5 and 13.5 Nm is reached, preventing overtightening and component damage. Built to esd and epa standards, it protects sensitive assemblies from electrostatic discharge during repetitive production tasks. The included cross-handle provides comfortable extra leverage for higher torque applications with less strain. Featuring a 1/4" female hexagon drive, it comes complete with a factory test certificate according to din en iso 6789-2:2017.

Product information FAQ

€67.80

tax incl.

Key features according to our expert

Min. tightening torque: 2,5 Nm
Max. tightening torque: 13,5 Nm

Scope of delivery

Torque screwdriver Type ESD FH,Models 4.5 and 13.5 with additional transverse handle for easier work,Test certificate according to DIN EN ISO 6789-2:2017,Delivery in sturdy carton packaging

Product description

Application Controlled screw tightening in the range 2.5 - 13.5 Nm
Series assembly with constant tightening value
Electronics industry, precision mechanics and industrial production
Design Fixed adjustable torque spanner - without scale
With 1/4" hexagonal socket for 1/4" bits according to DIN 3126 - C 6,3
Classified according to DIN EN ISO 67892003 Type II Class F, with traceable manufacturer's certificate
Accuracy +/- 6 % tolerance of the set scale value
Conforms to EPA (Electrostatic Protected Area), for use in electrostatically sensitive applications
Precision ball mechanism for controlled clockwise and anticlockwise tightening
Precision mechanism glides on noticeably when set value is reached
Automatic return to home position
Fatigue-free working is achieved by an ergonomic handle and quiet shut-off
A calibration sticker can be applied in the designated place
RAHSOL DREMOTEC can be supplied with a fixed factory setting or set manually using a suitable testing device
If fixed factory setting is required, please state Nm value when ordering (price on request)
Scope of delivery Torque screwdriver Type ESD FH
Models 4.5 and 13.5 with additional transverse handle for easier work
Test certificate in accordance with DIN EN ISO 6789-22017
Supplied in sturdy cardboard packaging

All Features

Min. tightening torque: 2,5 Nm
Max. tightening torque: 13,5 Nm
Torque (min.) [nm].: 2.5 Nm
Overall length [mm]: 140 mm
Tightening direction: Left and right
Precision +/-: +/- 6 %
Test certificate: DIN EN ISO 6789-2:2017
Drive type/drive: Bit holder
Fixed setting: Yes
Torque range (min./max.) [cnm].: 250 cNm-1350 cNm
Torque (min.) [cnm].: 250 cNm
Drive mounting, hexagonal [inch]: 1/4"
Drive adaptor, hexagonal [metric]: 6.3 mm
Torque (max.) [cnm].: 1350 cNm
T-handle available: Yes
Epa/esd version: Yes
Turn-off mechanism: Slipping clutch
Target groups: AutomotiveElectronics Industry Precision mechanics Military Service Construction switchgear
Torque range (min./max.) [nm].: 2.5 Nm - 13.5 Nm
Scope: AssemblyProduction Quality control Series assembly Maintenance and repair
Torque (max.) [nm].: 13.5 Nm

Brand GEDORE
02716306
EAN 4010886950074
Supplier number GEDORE 2927829

Frequently asked questions about this product

Answered by specialists

What torque range does this screwdriver support?: The tightening torque range is 2.5 to 13.5 Nm.
What type of bits can be used with this tool?: The tool features a 1/4" female hexagon drive suitable for standard 1/4" bits.
Is a test certificate included?: Yes, a factory test certificate according to DIN EN ISO 6789-2:2017 is included.
Does this model include an extra handle?: Yes, it comes with an additional cross handle for extra leverage and easier operation.
How does the pre-set torque mechanism operate?: It is a pre-set tool without a scale that slips noticeably once the target torque is reached.
