Scope of delivery

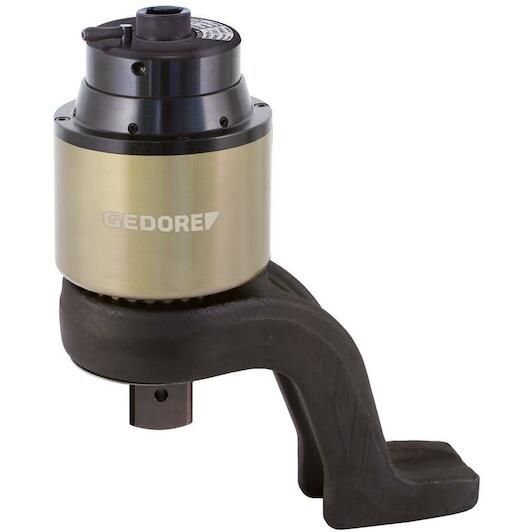

- Torque multiplier DREMOPLUS ALU
- With curved reaction support in Z-shape
- Supplied in sturdy transport case with foam insert
- Factory test certificate and setting chart
- Technical details available on request
Product description
- Particularly suitable for machine and plant construction
- Cable cars, lifts and masts
- Heavy industry, construction sites
- Bridge construction
- Ship, aircraft and railway construction
- Refineries, plastics industry
- All types of power plants
- Design Mechanical, manually operated torque multiplier for controlled tightening and loosening of screw connections
- With two-stage planetary gear system
- Housing made of high-quality aluminium
- Gear ratio 15, 128.5 or 139 effective
- All models with backstop (RS)
- With non-damaging "Slipper" overload protection for protecting the gear, clockwise and anticlockwise rotation
- With model-dependent, bent reaction arm in Z-shape made of chrome vanadium steel
- Optionally retrofitable with a straight L-shaped torque arm, with adjustable torque square, made of light metal
- Guaranteed accuracy tolerance better than +/- 3%
- Can be operated in combination with a torque spanner, 4 models with a max. load of max. 6000 Nm to max. 13000 Nm
- Output square with bore for use of impact spanners with locking pin and washer
Key features according to our expert
-
Max. tightening torque: 8000 Nm
Specifications / All features
-
Brand:
GEDORE
-
02302422
-
EAN:
4010886934340
-
Supplier number:
GEDORE 2653125
- Max. tightening torque
- 8000 Nm
- Backstop
- Yes
- Distance drive square - start of torque arm (min.)
- 110
- Drive intake, square [inch].
- 3/4"
- Input torque (max.) [nm].
- 420 Nm
- Output tightening torque (max) [lbf-ft].
- 5870
- Input torque (max) [lbf-ft].
- 310 lbf-ft
- Transfer ratio
- 0.0569444444444444
- Output torque (max.) [nm].
- 8000

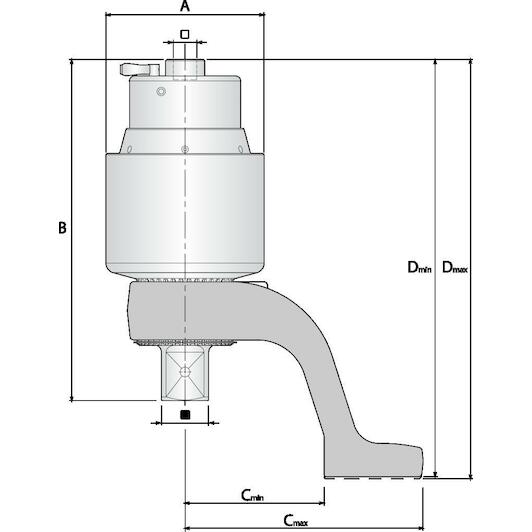

- Overall height with reaction arm (max.)
- 342
- Overall height without torque arm
- 277
- Overall width without torque arm
- 128
- Reaction arm version
- Z-shape, curved
- Drive mounting, square [metric]
- 20.0 mm
- Drive square [inch]
- 1.1/2"
- Overall height with reaction arm (min.)
- 338
- Distance drive square - end of torque arm (max)
- 190
- Drive square [metric]
- 38.1 mm
- Drive square
- 1.1/2"
- Overall length [mm]
- 230 mm
