Scope of delivery

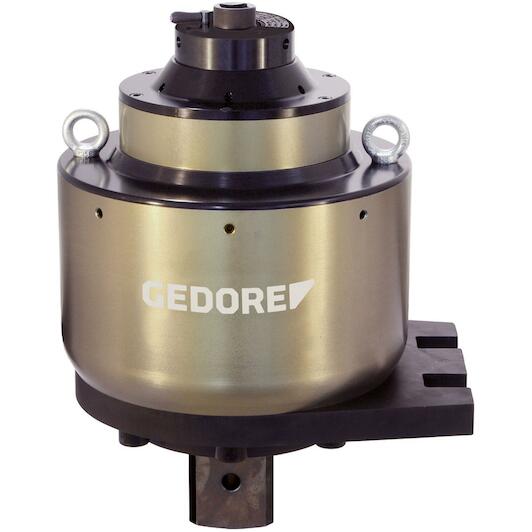

- DREMOPLUS ALU torque multiplier
- Delivered in sturdy box on pallet
- Setting chart
- Detailed technical information available on request
Product description
- Particularly suitable for heavy industry
- Oil industry
- Petrochemicals
- Design Mechanical, manually operated torque multiplier for controlled tightening and loosening of screw connections
- With three-stage planetary gear system
- Housing made of high-quality aluminium
- Torque arm made of chrome vanadium steel
- Gear ratio 1175
- With backstop (RS)
- With non-damaging "slipper" overload protection for protecting the gear, clockwise and anticlockwise rotation
- With possibility of welding on a torque arm (optional)
- Guaranteed accuracy tolerance better than +/- 3%
- Can be operated in combination with a torque spanner, 1 model with a maximum range of 54,000 Nm
- Output square with bore for use of impact spanners with locking pin and washer
