Scope of delivery

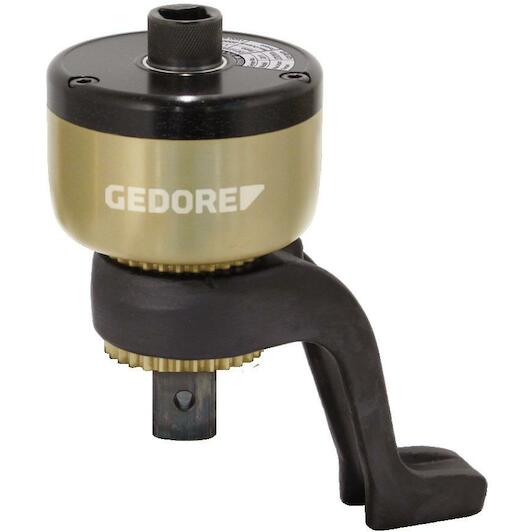

- Torque multiplier DREMOPLUS ALU
- With curved reaction support in Z-shape
- Supplied in sturdy transport case with foam insert
- Factory test certificate and setting chart
- Technical details available on request
Product description
- Particularly suitable for Industry, construction sites, commercial vehicle and passenger car workshops, agricultural engineering
- Bridge, ship, aircraft, railway construction, refineries
- Mechanical engineering and plant construction, maintenance
- Design Mechanical, hand-operated torque multiplier for controlled tightening and loosening of screw connections
- With single-stage planetary gear system
- Housing made of high-quality aluminium
- With bent Z-shaped torque arm made of chrome vanadium steel
- Optionally retrofitable with a straight L-shaped torque arm, with adjustable torque square, made of light alloy
- Gear ratio 15
- Guaranteed accuracy tolerance better than +/- 3%
- Can be operated in combination with a torque spanner, 1 model with a maximum range of 1300 Nm
- Also available as a set (No.
- DVV-13ZG) with three impact spanners SW 27, 30, 32 mm
- Output square with bore for use of impact spanners with locking pin and washer
Key features according to our expert
-
Max. tightening torque: 1300 Nm
Specifications / All features
-
Brand:
GEDORE
-
02248507
-
EAN:
4010886934548
-
Supplier number:
GEDORE 2653370
- Max. tightening torque
- 1300 Nm

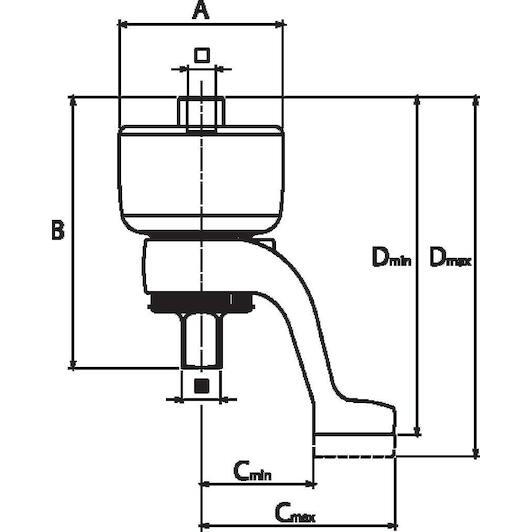

- Overall width without torque arm
- 80
- Distance drive square - start of torque arm (min.)
- 56
- Drive intake, square [inch].
- 1/2"
- Input torque (max.) [nm].
- 270 Nm
- Width moment multiplier
- 80
- Output tightening torque (max) [lbf-ft].
- 950
- Input torque (max) [lbf-ft].
- 200 lbf-ft
- Transfer ratio
- 0.0451388888888889
- Output torque (max.) [nm].
- 1300
- Overall height with reaction arm (max.)
- 173
- Overall height without torque arm
- 133
- Backstop
- No
- Reaction arm version
- Z-shape, curved
- Drive mounting, square [metric]
- 12.5 mm
- Drive square [inch]
- 3/4"
- Overall height with reaction arm (min.)
- 165
- Distance drive square - end of torque arm (max)
- 95
- Drive square [metric]
- 20 mm
- Drive square
- 3/4"
- Overall length [mm]
- 230 mm
