Scope of delivery
- Plastic case
- USB connection cable, power supply, screwdriver simulator, manual, test certificate
Product description

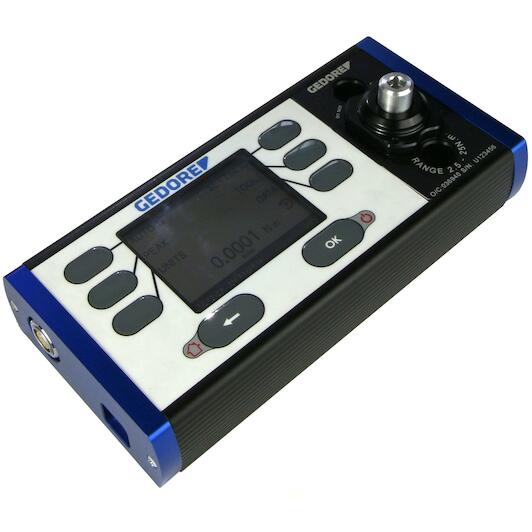

- Digital testing device for torque spanners and torque screwdrivers
- Light and robust due to aluminium housing, horizontal and vertical mounting possible, 4 models with a range of 0.1 - 25 Nm
- With 1/4" 4-sided thread (CH25 with 3/8")
- Measuring tolerance +/- 1% for all readings, 4 measuring modes sliding value display (track), 1st turn-off point recognition (first peak), highest value (peak), torque screwdriver control

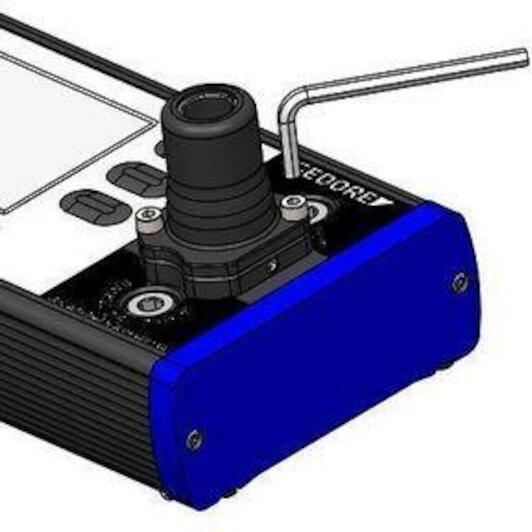

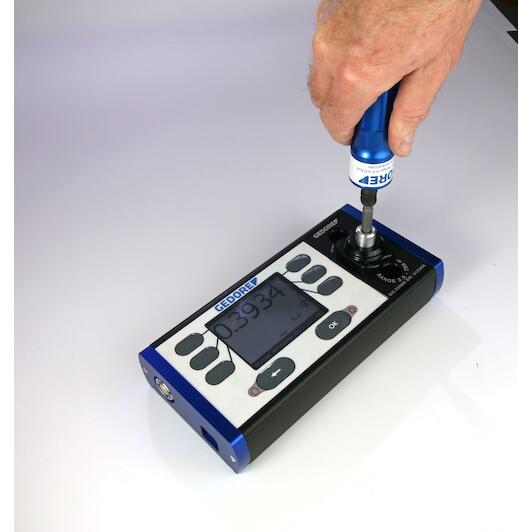

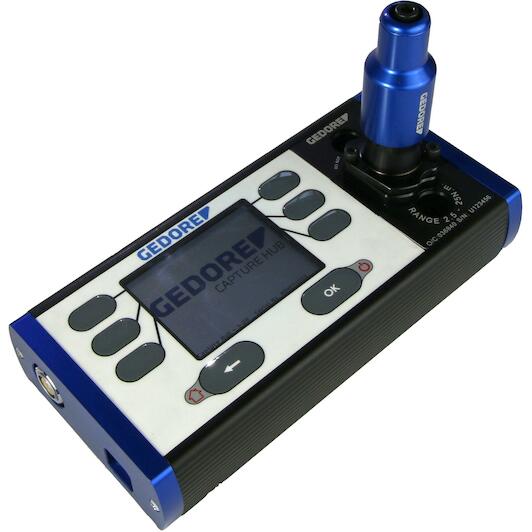

- Incl. attachment for screw connection simulation of torque screwdrivers
- Switchable units Nm, cNm, lbf-ft, lbf-in, ozf-in, 50 test procedures programmable
- Memory for 2000 measuring results
- Clear and high-contrast TFT display
- Expandable with additional capture sensor (connection available)
- Powerful lithium-ion battery for mains-independent operation
- Data output and power supply via USB connection
- Optional PC evaluation software "Capture Manager" (2908778)
- Scope of delivery Capture Hub
- Screw connection simulator
- USB cable
- Power supply with Euro plug
- Operating instructions
- Test certificate
- Sturdy plastic case with inlay
