GEDORE CH 1 Capture Hub electronic tester 0.1-1 Nm 036910 - 3128903

Name: GEDORE CH 1 Capture Hub electronic tester 0.1-1 Nm 036910 - 3128903
Brand: GEDORE
SKU: 08072847
Price: 4334.4 EUR
Availability: PreOrder

Recommended Retail Price €7,445.74

4,334.40 tax incl.

€3,582.15 excl. VAT (incl. all environmental contributions)

GEDORE CH 1 Capture Hub electronic tester 0.1-1 Nm 036910 - 3128903

€4,334.40 Recommended Retail Price €7,445.74

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Scope of delivery

Plastic case
USB connection cable, power supply, screwdriver simulator, manual, test certificate

Product description

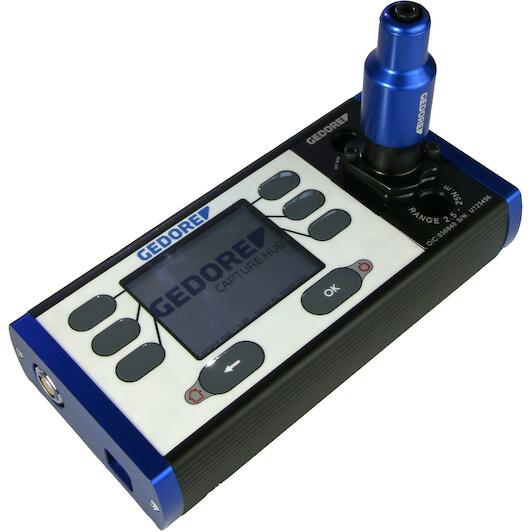

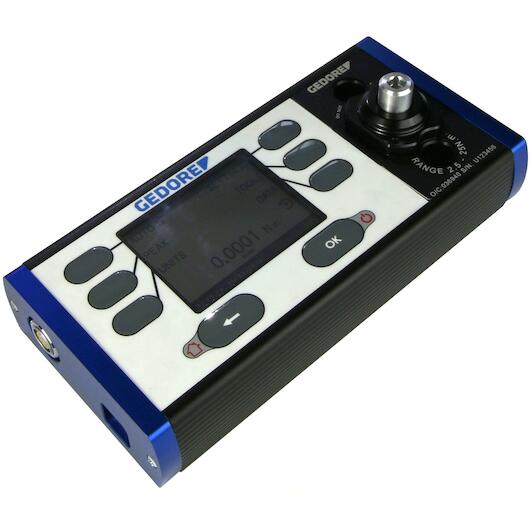

Digital testing device for torque spanners and torque screwdrivers
Light and robust due to aluminium housing, horizontal and vertical mounting possible, 4 models with a range of 0.1 - 25 Nm
With 1/4" 4-sided thread (CH25 with 3/8")
Measuring tolerance +/- 1% for all readings, 4 measuring modes sliding value display (track), 1st turn-off point recognition (first peak), highest value (peak), torque screwdriver control

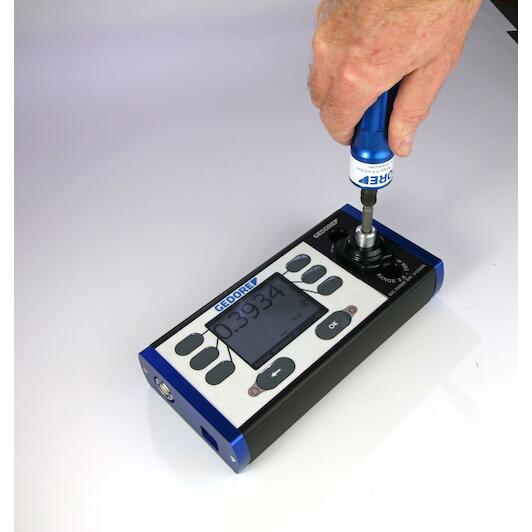

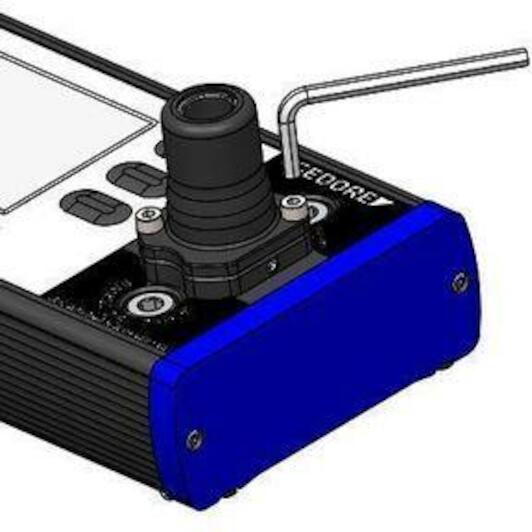

Incl. attachment for screw connection simulation of torque screwdrivers
Switchable units Nm, cNm, lbf-ft, lbf-in, ozf-in, 50 test procedures programmable
Memory for 2000 measuring results
Clear and high-contrast TFT display
Expandable with additional capture sensor (connection available)
Powerful lithium-ion battery for mains-independent operation
Data output and power supply via USB connection
Optional PC evaluation software "Capture Manager" (2908778)
Scope of delivery Capture Hub
Screw connection simulator
USB cable
Power supply with Euro plug
Operating instructions
Test certificate
Sturdy plastic case with inlay

Key features according to our expert

Measuring range: 0,1 - 1 Nm

Specifications / All features

Brand: GEDORE
08072847
EAN: 0611702895797
Supplier number: GEDORE 3128903

Measuring range: 0,1 - 1 Nm
Overload protection: No
Torque (min.) [nm].: 0.1 Nm
Overall length [mm]: 200 mm
Drive intake, square [inch].: 1/4"
Measuring accuracy of tightening torque: ± 1 % Tolerance at all ablesewerten
Tightening torque (max.) [lbf-in].: 8.8 lbf-in
Tightening torque (min.) [lbf-ft]: 0.08 lbf-ft
Graphic display: No
Reach: 0
Interface: USB
Tightening range (min/max) [lbf-ft].: 0.08 lbf-ft - 0.75 lbf-ft
Drive mounting, square [metric]: 6.3 mm
Operating direction: right
Tightening torque (min.) [lbf-in].: 0.9 lbf-in
Tightening torque (max) [lbf-ft]: 0.75 lbf-ft
Torque range (min./max.) [nm].: 0.1 Nm - 1 Nm
Resolution: 0,0001
Material: aluminum case
Torque (max.) [nm].: 1 Nm
