GEDORE 8801-02 KNICKER torque spanner type 88 KNICKER 3/4" 200-800 Nm - 3022862

Supplier number: GEDORE 3022862 | EAN 4010886950234
This product has been discontinued.



Product information

Key features according to our expert

  • Max. tightening torque: 800 Nm
  • Drive profile size: 3/4"
  • VDE approved: No
  • With safety colour code 1000V: Not applicable
  • ESD: No
  • Display: Analogue
  • Min. tightening torque: 200 Nm

Scope of delivery

  • KNICKER torque spanner type 88,Test certificate in accordance with DIN EN ISO 6789,Supplied in a robust plastic case

Product description

  • Application Controlled screw tightening in the range 150 - 1000 Nm
  • Industry and automotive (trucks, commercial vehicles)

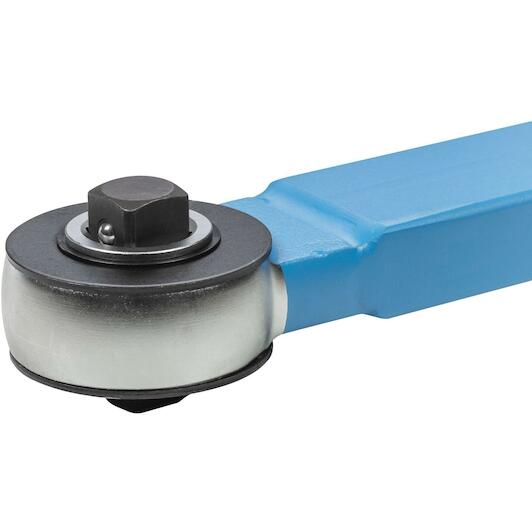

  • Design Adjustable torque spanner - with scale, 3/4" drive square with integrated ratchet function
  • Suitable for clockwise and anticlockwise tightening, due to piercing square
  • Accuracy +/- 4 % tolerance of set scale value
  • Construction in accordance with DIN EN ISO 6789, traceable to national standards
  • Snap mechanism (handle bends) as switch-off signal, tactile and visible, makes overtightening unlikely, double scale in Nm and lbf-ft
  • Scope of delivery Torque spanner type 88 KNICKER
  • Test certificate in accordance with DIN EN ISO 6789

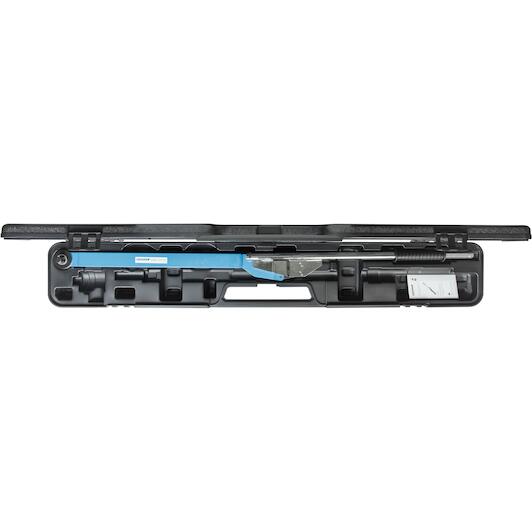

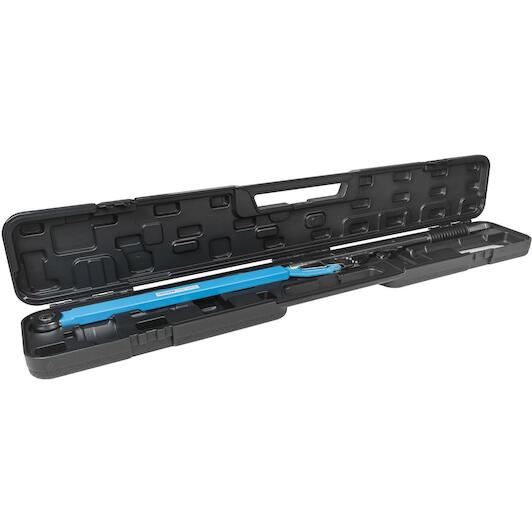

  • Supplied in a robust plastic case

All Features

Max. tightening torque
800 Nm
Drive profile size
3/4"
Vde approved
No
With safety colour code 1000v
Not applicable
Esd
No
Display
Analogue
Min. tightening torque
200 Nm
Precision +/-
+/- 4 %
Drive type/drive
Piercing square
Tightening torque (min.) [lbf-ft]
150 lbf-ft
Scale division [nm]
20 Nm
Overall length [mm]
1,250 mm
Storage/contents
Plastic case
Tightening direction
Left and right
Drive square [inch]
3/4"
Retrieval angle
10 °
Torque (min.) [nm].
200 Nm
Fixed setting
No
Target groups
Automotive Industry Construction and commercial vehicles Consumer Military Mechanical Engineering Utilities Railroad Service Agriculture Oil and gas
Tightening torque (max) [lbf-ft]
600 lbf-ft
Turn-off mechanism
Long-stroke release
Scale division [lbf-ft]
10 lbf-ft
Drive square [metric]
20 mm
Scope
AssemblyMaintenance and repair
Material
Tubular steel construction
Number of teeth
36
Torque (max.) [nm].
800 Nm
  • Brand GEDORE
  • EAN 4010886950234
  • Supplier number GEDORE 3022862
