Scope of delivery
- Storage box, power adapter, connection cable, manual Software on request!
Product description

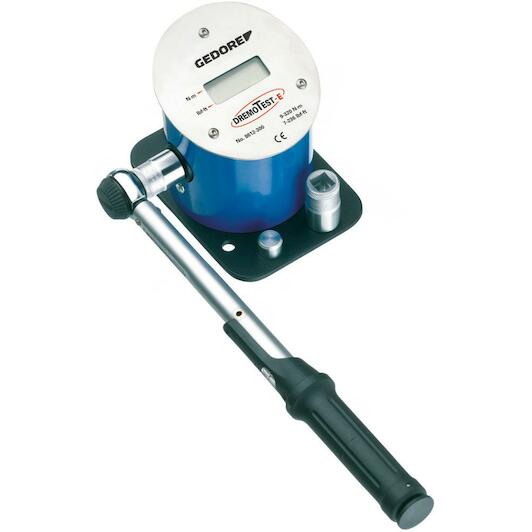

- For checking or adjusting right-handed torque spanners and torque screwdrivers, ideal for checking fixed-set production line torque wrenches
- Simple electronic tester with integrated torque sensor (DMS), 5 models in the range 0.2 - 3150 Nm
- With hexagonal socket 1/4"
- SW 10, 17, 36 mm or inside square 1.1/2" (depending on version)
- With 1/4", 3/8", 1/2", 3/4", 1" and 1.1/2" square adapter (depending on version)
- High measuring accuracy +/- 1 % tolerance on all readings, +/- 1 digit, peak value detection (first peak/breakpoint detection)
- Auto set
- Switchable between Nm, lbf-ft and lbf-in
- RS232 serial interface for PC
- Software for plausibility check on request - Software suite (Code 3454630)
- Scope of delivery Electronic test device
- RS232 cable
- Mains adapter with Euro plug (UK
- US
- AUS adapter on request), 100 - 240 V, 50 - 60 Hz, max. 500 mA (see rating plate), 2 socket spanners (size and drive model dependent)
- Adapter for No. 8612-3150
- Operating instructions
- Shipping packaging
- Test certificate
Key features according to our expert
-
Measuring range: 6 - 320 Nm
Specifications / All features
-
Brand:
GEDORE
-
41151056
-
EAN:
4002805928349
-
Supplier number:
GEDORE 1856111
- Measuring range
- 6 - 320 Nm
- Tightening range (min/max) [lbf-ft].
- 7 lbf-ft - 236 lbf-ft
- Torque (min.) [nm].
- 9 Nm
- Overall length [mm]
- 150 mm
- Adapter
- 3/8", 1/2"
- Measuring accuracy of tightening torque
- ± 1 % Tolerance at all Ablesewerten, ± 1 Digit
- Tightening torque (min.) [lbf-ft]
- 7 lbf-ft
- Graphic display
- No
- Reach
- 0
- Interface
- 3.5 mm Klinkenausgang (RS232)
- Overload protection
- No
- Drive adaptor, hexagonal [metric]
- 17,0
- Tightening torque (max) [lbf-ft]
- 236 lbf-ft
- Torque range (min./max.) [nm].
- 9 Nm - 320 Nm
- Resolution
- 1,0
- Torque (max.) [nm].
- 320 Nm
