Controlled tightening of screws in the range 40-200 N-m / 30-150 lbf-ft,application in almost all industrial sectors,Design: classified according to DIN EN ISO 6789:2003 type II class A,with a factory certificate
Accuracy: +/- 3 % of the set scale value

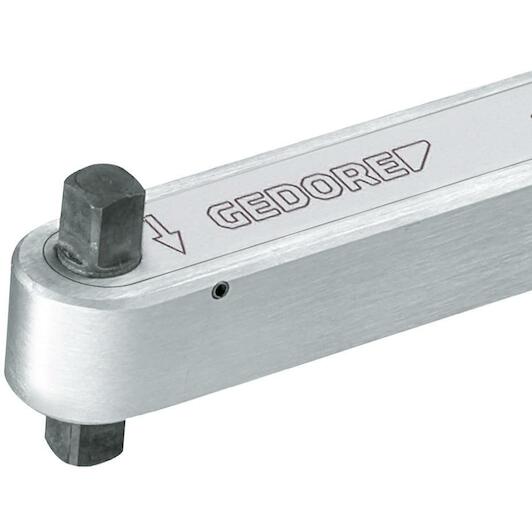

Exceeds the guideline of the standard (+/- 4 %),1/2" drive square with ball lock DIN 3120 - A 12.5,ISO 1174,automatic shut-off with tangible and audible signal,double scale with 5 N-m and 5 lbf-ft scale,drive square with push-button release (type BC),With push-button release,Technical advantages/function: Light but robust (because the housing is made of a single piece of aluminium),Very workshop-friendly,No shifting of set values and thus no influence on accuracy by working with both hands or outside the handle (as with conventional torque spanners).,Both the drive square and the pivot point are on one shaft,so extending the spanner does not affect the tightening value...,Extremely low wear due to force reduction on the lever mechanism,Forged lever chain from the GEDORE quality works,High accuracy, even in continuous heavy-duty use,Long service life and long operating life,Simple operation - quick and reliable tightening of the set torque,Convenient setting using an attractively designed, captive adjustment knob at the end of the handle,Single or double drive square for controlled clockwise and/or anticlockwise tightening
