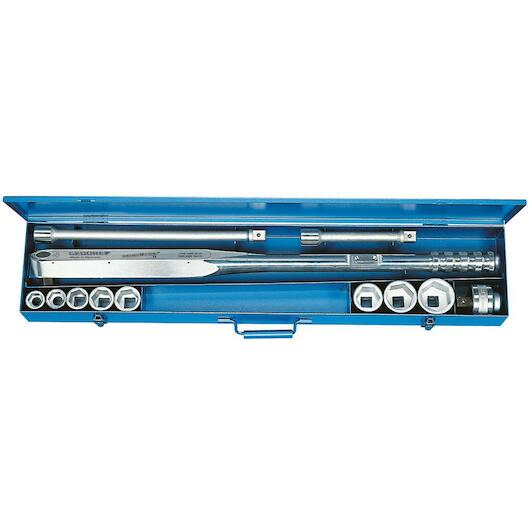

Scope of delivery
- Set of mm
- 22 24 27 30 32 36 41 46
- 754-04 200 + 400 mm
Product description
- Application Controlled screw tightening in the range 155 - 760 Nm / 115 - 560 lbf-ft
- For use in almost all industrial (production) environments
- Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 3/4" drive square with pin lock DIN 3120 - B 20
- ISO 1174
- Automatic stop with tactile and audible signal
- Double scale with 10 Nm and 10 lbf-ft graduations
- Technical advantages/function Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
- No shifting of set values and therefore no impact on accuracy by working with both hands or outside the handle (as with conventional torque spanners)
- Both the drive square and the pivot point are on one shaft, so lengthening the spanner does not affect the tightening value
- Extremely low wear due to force reduction on the lever mechanism
- Forged lever chain from the in-house GEDORE quality forge
- High precision, even in heavy continuous use
- Long service life and long service life
- Simple operation - quick and reliable tightening of the set torque
- Convenient adjustment using an attractively designed, captive adjustment knob on the handle end

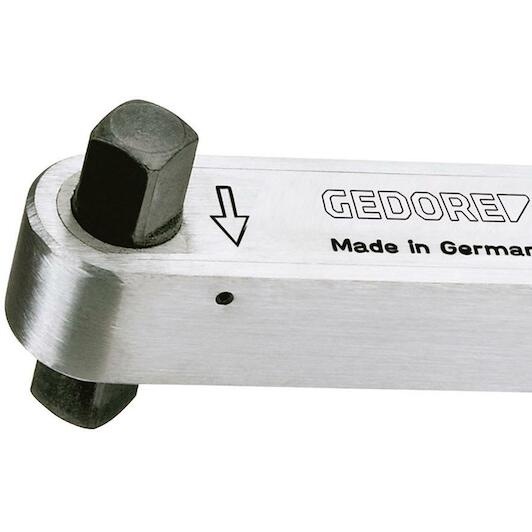

- Single or double drive square for controlled clockwise and/or anticlockwise tightening
