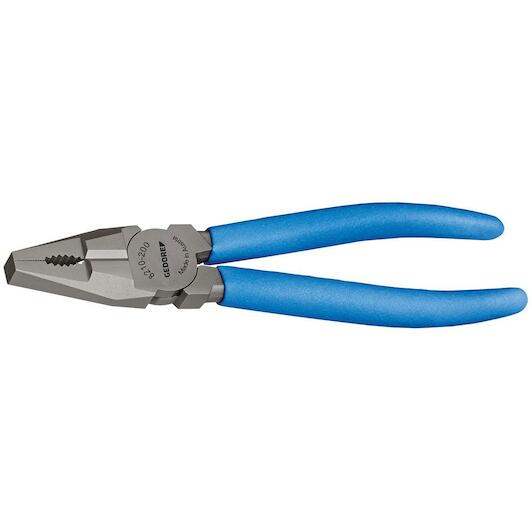

Product description
- Construction in accordance with DIN ISO 5746
- Reinforced version, for heavy-duty continuous use
- With tapered cutting housing
- For round and flat material
- For medium-hard wire 1.6 mm
- Induction-hardened precision cutting edges, hardened to 62-64 HRC
- GEDORE special steel, die-forged, oil-hardened and tempered
- JC design = chrome-plated, with 2-component handles
- Version TL = steel grey, non-slip handles with blue plastic covering
- Model TC = chrome-plated, with blue dipped handles
Key features according to our expert
Specifications / All features
-
Brand:
GEDORE
-
41894711
-
EAN:
4010886671139
-
Supplier number:
GEDORE 6711340
- Length
- 160 mm
- Spark-free design
- Nein

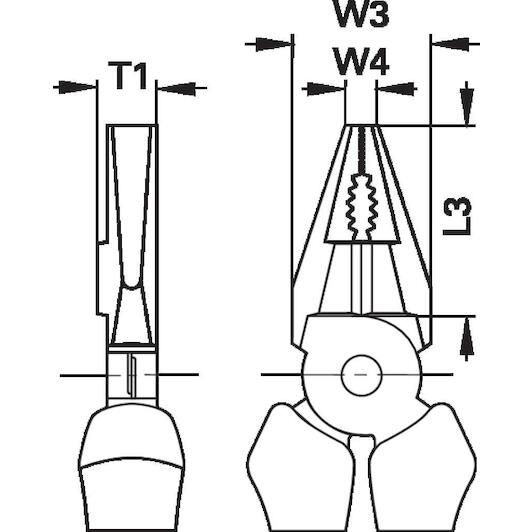

- Point width w4 [mm]
- 5.8 mm
- Cutting plane shape
- with facet
- Bevel
- with
- Standard
- DIN ISO 5746
- Head width 1 [mm].
- 23.0 mm
- Cup shape
- flat beaks
- Jaw length l3 [mm]
- 34 mm
- Curing process
- Induction hardened
- Handle version
- dip-isolated
- Cutting surface hardness
- 62 - 64 HRC
- Cutting values
- Soft wire: 4 mm / 6 AWGMedium hard wire: 3.1 mm / 8 AWG Hard wire: 2 mm / 12 AWG Multi-wire cable Ø: 10 mm CU cable, multi-wire: 16 mm²
- Opening spring present
- No
- Point strength
- 10.8 mm
- Joint types
- implanted joint
- With cutting edge
- Yes
- Head thickness t1 [mm]
- 10.8 mm
- Handle colour
- Blue
- Material
- Quenched and tempered steel
- Overall length [mm]
- 160 mm
