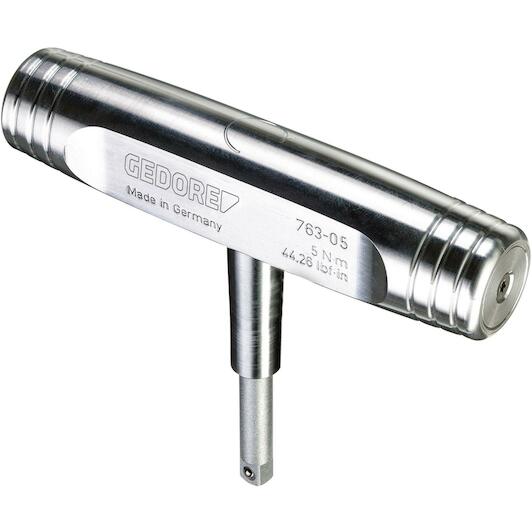

Product description
- Application Less hand force required compared to using torque screwdrivers.
- Z
- E.g. module mounting for solar energy systems, tool holders etc., where torques are too high for conventional torque screwdrivers
- Design Torque wrench series with 8 permanently preset models for series production
- For controlled clockwise tightening
- Tripping accuracy according to DIN EN ISO 6789-22017 Type II class E ( /- 6 %)
- Light and robust - housing made of high-quality aluminium alloy
- With test certificate according to DIN EN ISO 6789-22017, traceable to the national standard via the in-house DAkkS laboratory.
- Special ranges on request
Key features according to our expert
-
Min. tightening torque: 7 Nm
-
Drive profile size: 1/4"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 7 Nm
-
Max. tightening torque: 7 Nm
Specifications / All features
-
Brand:
GEDORE
-
02014854
-
EAN:
4002805929346
-
Supplier number:
GEDORE 1947974
- Min. tightening torque
- 7 Nm
- Drive profile size
- 1/4"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 7 Nm
- Max. tightening torque
- 7 Nm
- Turn-off mechanism
- Short road clearance
- Overall length [mm]
- 100 mm
- Tightening direction
- Turn right
- Precision +/-
- +/- 6 %
- Drive type/drive
- Single-sided square
- Fixed setting
- Yes
- Drive square [inch]
- 1/4"
- Distance housing - square centre
- 62.5 mm
- Torque range (min./max.) [nm].
- -7 Nm
- Target groups
- AutomotiveElectronics Industry Precision mechanics Military Energy Mechanical engineering Construction control cabinet
- Drive square [metric]
- 6.3 mm
- Fixed setting value
- 7 Nm
- Scope
- AssemblySeries assembly Production
- Material
- Aluminium alloy
- Torque (max.) [nm].
- 7 Nm
